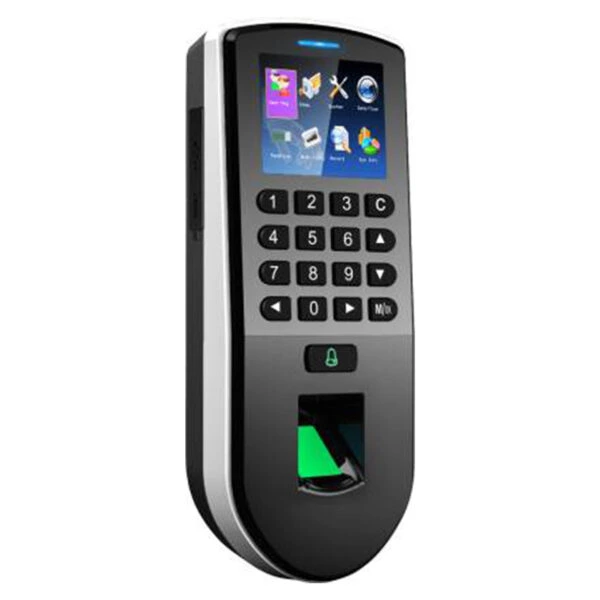

ZKTeco F19

F19 is an intensive biometric print reader for access control applications, offering an unparalleled performance by using an advanced algorithm for reliability. precision and excellent matching speed. The F19 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, a high-image-quality infrared detection fingerprint sensor. The device offers flexibility to be installed standalone or with any third party access control panels that support standard Wiegand signal. All the operations can be done on the TFTLCD color screen. The fingerprint image will be displayed on it. That will guide the user to put a finger on proper position and increase the recognition rate. TCP/IP and RS485 are available that the device can be used in a different network.


  • Fingerprint Capacity                 3000
  • Record Capacity                           1,00,000
  • Sensor                                             ZK optical sensor
  • Algorithm version                        ZK Finger V9.0&10.0
  • Display                                          TFT LCD Color Screen
  • Interface styles                             Common, Matrix and Magic styles
  • Communication                           RS232/485, TCP/IP, USB-host
  • Access Control Interface            3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell
  • Wiegand signal                            Input and Output
  • Standard Functions                    Web server, Anti-passback
  • Optional function                        ID Card, RFID S50/S70 IC Card (13.56Mhz) 1K/4K
  • Power Supply                               DC 12V 3A
  • Operating Temp                           0 °C – 45 °C
  • Operating Humidity                     20%-80%
  • Dimension                                      87?195*42.5mm
