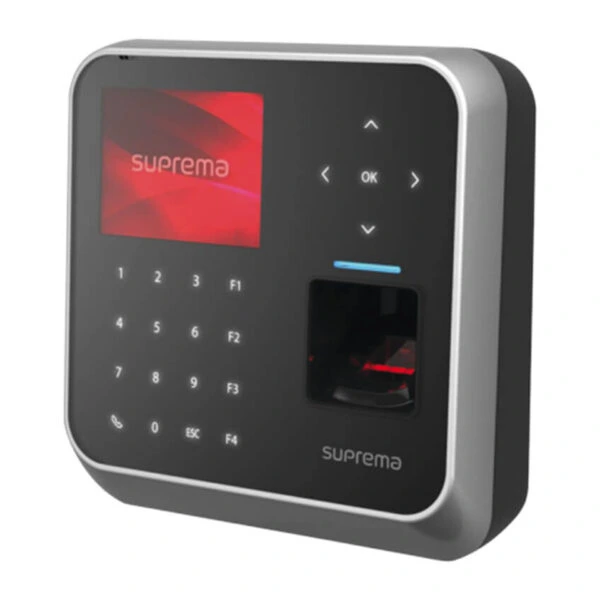

Suprema BioStation A2

IP Fingerprint Terminal

World’s Best Performance

BioStation A2 features a class-leading powerful Quad Core CPU that enhances user experience by offering World’s best matching performance, smooth graphics, and quick response for users. BioStation A2 carries massive 8GB memory to store up to 500,000 users, 5,000,000 text logs as well as 50,000 image logs to accommodate enterprise class sites with room to spare.

World’s Best Accuracy

BioStation A2 combines the benefit of new OP5 sensor and improved Suprema fingerprint algorithm to provide world best accuracy. Enlarged sensing area with introduction of new fingerprint capture and processing techniques such as adaptive gain control, distortion compensation and noise reduction allows BioStation A2 to reduce capture error rate in various environments.

Enhanced Security

BioStation A2 features Suprema’s all new Live Finger Detection technology. Using combination of proprietary optics and algorithm technology, BioStation A2 clearly distinguishes fake fingers made from number of different materials to prevent any fraudulent activity.

Improved Usability

BioStation A2 is designed to secure maximum usability for users. 5” IPS LCD touch screen provides wide viewing angles and easy operation that is further extended by special reinforced glass screen that ensures maximum screen visibility. The UI is inspired from Android based material design that is self-explanatory and easy to understand for users.

Premium Design

BioStation A2 ensures its premium status with soft hairline pattern on the front face for sleek and solid look. It is wrapped around with rose-gold colored rim finish that serves as a centerpiece while blending in beautifully with any environment.

Extended Versatility

BioStation A2 shows off extended versatility with its built-in 2MP wide-angle camera that captures high resolution face captures through face detection for image logs. BioStation A2 also supports videophone, PoE, and built-in WiFi along with extensive RF card options to ensure versatility.


  • Make                                            Suprema
  • Manufacturer                             Suprema
  • Model code                                 BioStation2
  • Reader Type                               Biometric
  • Standalone/ Networkable       Standalone / Networkable
  • IP Rating                                     IP65
  • Keypad Integrated                    Yes
  • Reader Output format             TCP/IP, RS-485, RS-232, Wiegand reader output
  • LED / Beep                                 LED / Beep
  • Wiegand Interface                    Yes
  • Electrical Specifications          Voltage: 12 V DC, PoE
  • Physical Specifications                  Dimensions mm: 142 x 144 x 45
  • Environmental Specifications     Operating Temp oC: -20 ~ +50 C (-4 ~ 122 F)

Additional info

Suprema BioStation2 IP fingerprint terminal combines a powerful processor, next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivalled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease. It is ideal for applications that require versatility without compromise in style and performance. Combined with the latest innovative features from Suprema, the BioStation2 offers unmatched benefits to customers looking for a biometric access control and time & attendance solution.
