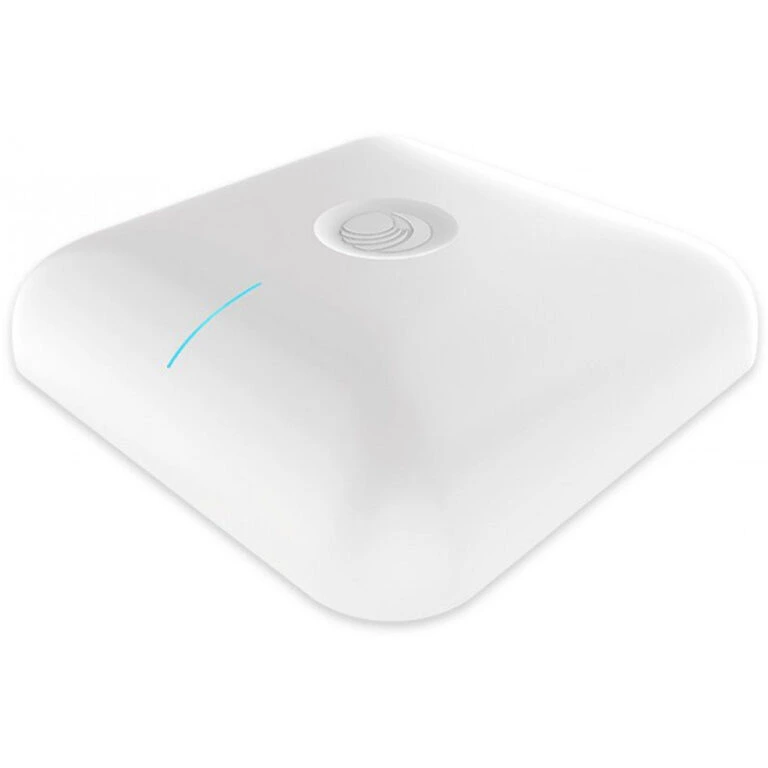

CAMBIUM cnPilot e600

Cambium CN Pilot e600 is powered with Multi User MIMO (MU-MIMO) 802.11ac wave2 technology for faster transmission. This indoor wireless access point is perfect for applications that demand high capacity, range and support high user density. It features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more essential features for easy Wi-Fi operations. It supports 512 max concurrent client associations and is secured with WPA-2 encryption. The access point is essential for today’s demanding high density indoor Wi-Fi networks.

Features

Zero touch provisioning and configuration

Inventory tracking and monitoring

Supports max up to 512 users

Offers more flexibility for both coverage and capacity

Increased performance

Affordable and no hidden charges

Integrated troubleshooting

Specifications:

ACCESS POINT

Standards

IEEE 802.11a/b/g/n/ac Wave 2 | Other standards: 802.11 h/d/r/u/w/

MIMO Streams

2×2 (2.4 GHz) , 4×4 (5 GHz) MIMO streams.

Range

250 m (800 Ft)

Concurrent Clients

512

Max Data Rate

1.73 Gbps (1,733 Mbps)

WI-FI FEATURES

Authentication

Secure Web page, RADIUS based 802.1x including EAPSIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS MAC authentication (local database or External RADIUS server)

Captive Portal/ Guest Access

• cnMaestro Controller • Stand-alone AP based • Redirection to external RADIUS Server • Active Directory Integration

Secure WLAN

WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
