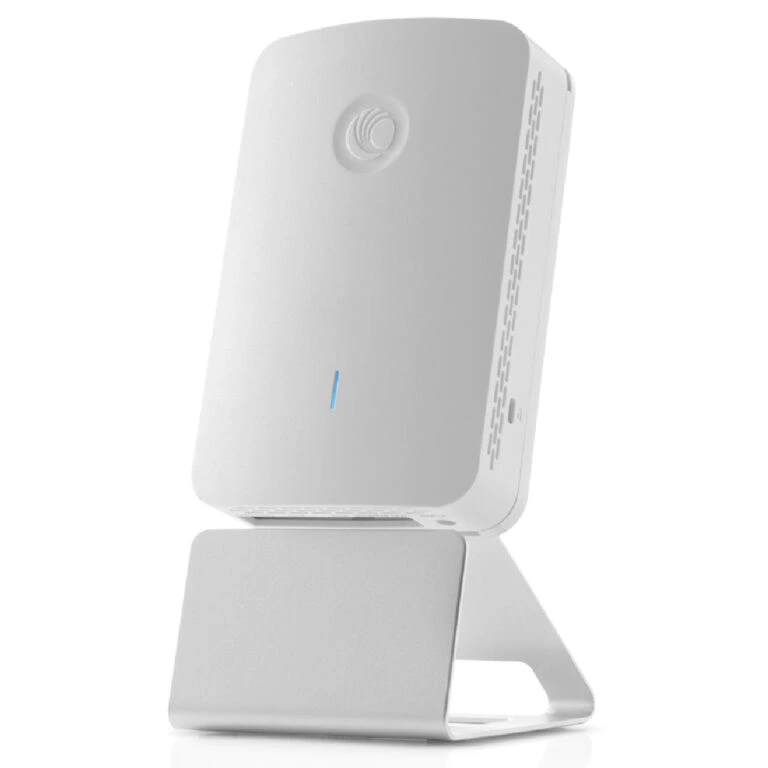

CAMBIUM cnPilot e430H Wall Plate

Cambium CN Pilot E430 is an affordable enterprise class indoor wall plate access point ideal for malls, hotels and other indoor environments that need a wall mounted wireless access point. It offers seamless roaming facility for up to 2048 clients. The controller given guest access feature support for social login and with the ability to create time and rate limited vouchers for temporary access makes it ideal for hotels, malls, resorts etc…When the internet connection is down at any critical time the E430 enable client devices to select a different working neighboring access point. It packs strong transmitting power for high density deployments.

Features

Zero touch onboarding and configuration

Inventory tracking and monitoring

Supports seamless roaming for up to 2048 clients

Offers more flexibility for both coverage and capacity

Increased performance

Affordable and no hidden charges

Specifications:

ACCESS POINT

Standards

IEEE 802.11a/b/g/n/ac Wave 2 Others: 802.11 h/d/r/u/w/

MIMO Streams

2×2 MU-MIMO streams.

Concurrent Clients

256

WI-FI FEATURES

Controller modes

• Autonomous Controller-less operations (E.g.: roaming) • Cloud Managed • On-premise virtualized controller

Secure WLAN

WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)

Built-in Captive Portal/ Guest Access

• Wired & wireless clients • Rate/Time/Quota control • Redirection to external RADIUS Server. • Active Directory Integration

Authentication

Secure Web page, RADIUS based 802.1x including EAPSIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS MAC authentication (local database or External RADIUS server)
