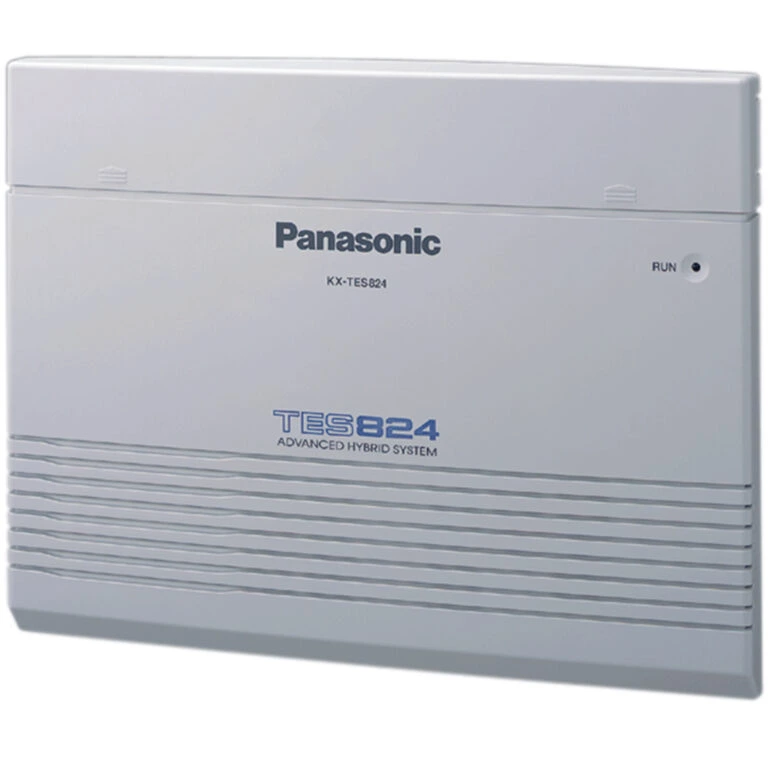

Panasonic KXTES 824

Hybrid system

Up to 8 CO lines and 24 Extensions

Direct Inward System Access (DISA) with message

Uniform Call Distribution (UCD) with message

Day/Night/Lunch mode

Type-approved by IDA for use in Singapore

Caller ID Display on SLT

Built-in Voice Message (optional)

3-level Automatic Reception with Voice Guidance

Flexible SMS Routing

The system supports 3 outside (CO) lines and 8 extensions But can be extended Upto 8 CO lines and 24 extensions with additional cards upon next purchase, Installation support if required will be charged at additional cost

The Package Includes, KX-TES824BX EPABX System, 3port caller id card shown in image KX-T82494X, & Landline -KX-T7730

Direct inward system access (DISA) with mesaage,3-level automatic reception with voice guidance

Uniform call distribution (UCD) with message

Day/Night/Lunch mode,Caller ID Display on SLT,Build-in voice message

Advanced Hybrid Telephone System

Up to 24 extensions

The KX-TES824E is initially configured to 3 exchange lines and 8 extensions. With optional cards you can easily expand the capacity up to 8 exchange lines and 24 extensions.The system is ideal for a Small Office Home Office and comes with features like Direct Inward System Access, Extension Caller ID, Voice Message Card.

Maximum Capacity – 8CO’s,24 Extensions (16:Hybrid 8:SLT)

Intercom Paths – 4

Dialling Method – External: Tone (DTMF) / Pulse (10 pps, 20 pps), Internal: Tone (DTMF) / Pulse (10 pps, 20 pps)

Dialling Conversion – Pulse to tone

Connections – CO Line ,Intercom , Paging , External Music , SMDR , Programming

SMDR – Detail Recording: Date, Time, Extension Number, CO Line, Number, Dialled Number, Call Duration, Account Code, Caller

Polarity Reverse Detection*2 – Yes

Voice Mail Ports – 2 ports (APT or DTMF)

DTMF Receivers – 2 / 8 Extension

DTMF Generator – / 8 Extension

CO – CO Transfer Path- 2 / CO Line Card

Power Failure Transfer Ports- 1  / CO Line Card

Direct Connection to External Battery – yes

Power Source – AC 110 – 240 V, 50/60 Hz

Power Consumption – 45W

Dimensions (W x H x D) – 368 mm x 284 mm x 117 mm

Weight (when fully expanded)- Approx. 3.5 Kg
