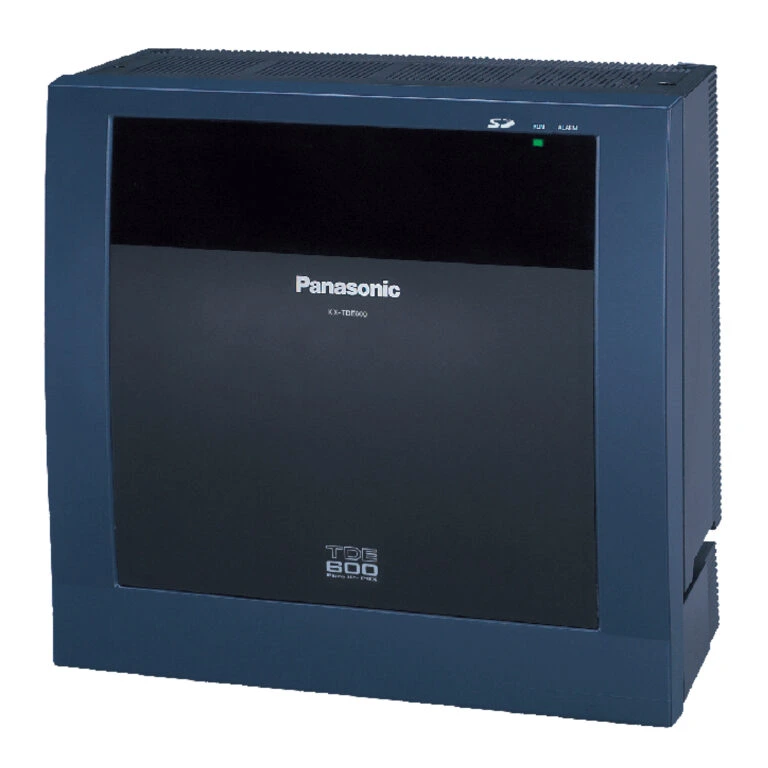

Panasonic KXTDE 600

The KX-TDE600 OneNet Pure IP PBX is an advanced corporate communication systems providing IP telephony features and functionalities over both local and broadband IP networks

Empowered with the latest SIP technology and packed with extensive productivity applications, the KX-TDE600 OneNet IP-PBX

Is designed for a medium to large business up to 1100 users

Packed with extensive productivity applications

The Panasonic KX-TDE600 OneNet builds on the “Pure IP PBX” converged model as in KX-TDE100/ 200 OneNet.

As an advanced communication platforms for IP networking Environments, supporting network as well as desktop SIP connectivity, the convergence ready KX-TDE OneNet products support a range of advanced IP telephones as well as digital extensions and ISDN trunks.

Built as a business application environment and bundled with important business telephony applications – the KX-TDE OneNet systems can easily address your business communication needs well into the 21st Century. Targeting Medium to Large businesses, single site or multiple offices, the TDE600 OneNet is a welcome member to the family to support customer needs.

Max CO Lines: 640

Max Analog CO’s: 640

Max VoIP (H.323) trunks: 32

Max VoIP (SIP) trunks: 64

Max Total Extensions: 992 (1152 with DXDP)*

*Even when Digital XDP is used, each shelf supports a maximum of 256 KX-DT300/KX-T7600 series

Max Analog Proprietary Extensions: 320

Max Single Line Telephones : 960

Max Digital Proprietary extensions: 640 (DT300, T7600 series)

Max IP Proprietary Phone extensions: 704

Max SIP extensions: 128

Multi-Cell Wireless Compatible: Yes

Maximum Cell Stations (Antennas): 128

Maximum Portable Handsets: 512

Direct Station Select (DSS) Consoles: 64

Dimensions (H x W x D): 16.3? x 16.9? x 10.6? (per shelf)

Weight: under 35 lbs (per shelf)
