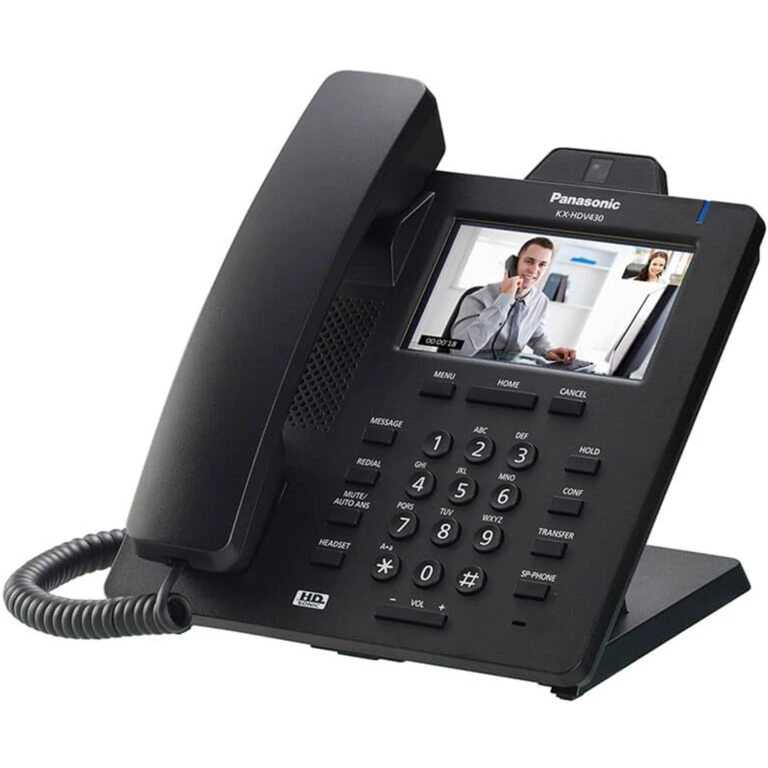

Panasonic KX-HDV 430

16 SIP accounts

Built-in Video Camera & Video Communication

4.3-inch color TFT LCD with touch panel

24 flexible function keys

HD Voice (G.722)

Built-in Bluetooth®

Up to 2,500 phonebook

Compatible with Broadsoft UC one

2 x 10/100/1000M ports, PoE

XML Application Interface

Changeable angle stand

Wall mounting

The versatile KX-HDV430 marks the high-end addition to Panasonic’s now complete range of deskphones, thanks to its built-in video camera, offering multiway video communication and remote visual monitoring.

The innovative KX-HDV series of SIP deskphones offers you flexible, world-leading communication, faultless reliability and long-term cost savings in one complete package.

LCD Display – 4.3 – inch color TFT LCD with touch screen

LCD Backlight – Active: 8 levels, Inactive: Low / Off

Desk Mount Tilt – Yes – 2 positions

Wall Mount – – (Included)

Power Adaptor- KX-A424 (optional)

Handset, Speaker, Headset Volume – 8 levels (includes echo cancellation and distortion prevention)

Speaker Phone – Yes(Full Duplex / Wideband)

HD Voice – yes

Audio Codec – G.711a-law / G.711µ-law / G.722 (wideband) / G.729a

Programmable Keys – 24 (Touch screen on LCD)

Phone Book (Local) – 2,500 (500 items x 5 numbers)

LDAP Remote Phonebook – yes

XML Remote Phonebook – yes

Call Log Entries- 30 incoming calls + 30 outgoing call

Conferencing – 3 parties (within terminal – multi-party dependent on server)

XML Application – yes

Music on Hold- Supplied by Host Service (PBX / SIP Server)

Plug & Play Configuration- Server based configuration, TR-069

Manual Configuration – Internal web Configurator, Local (LCD based) network configuration

Ethernet Ports – 2

Ethernet Interface – 10/100/1000 Mbps

PoE (Power over Ethernet) – Yes

Weight (with handset,handset cord and stand) – 870 g

Dimensions (Width × Depth × Height; excluding the handset, stand attached) –

High position: 195 mm × 190 mm × 209 mm

Low position: 195 mm × 184 mm × 188 mm
