HPE PROLIANT SERVER DL580 GEN10

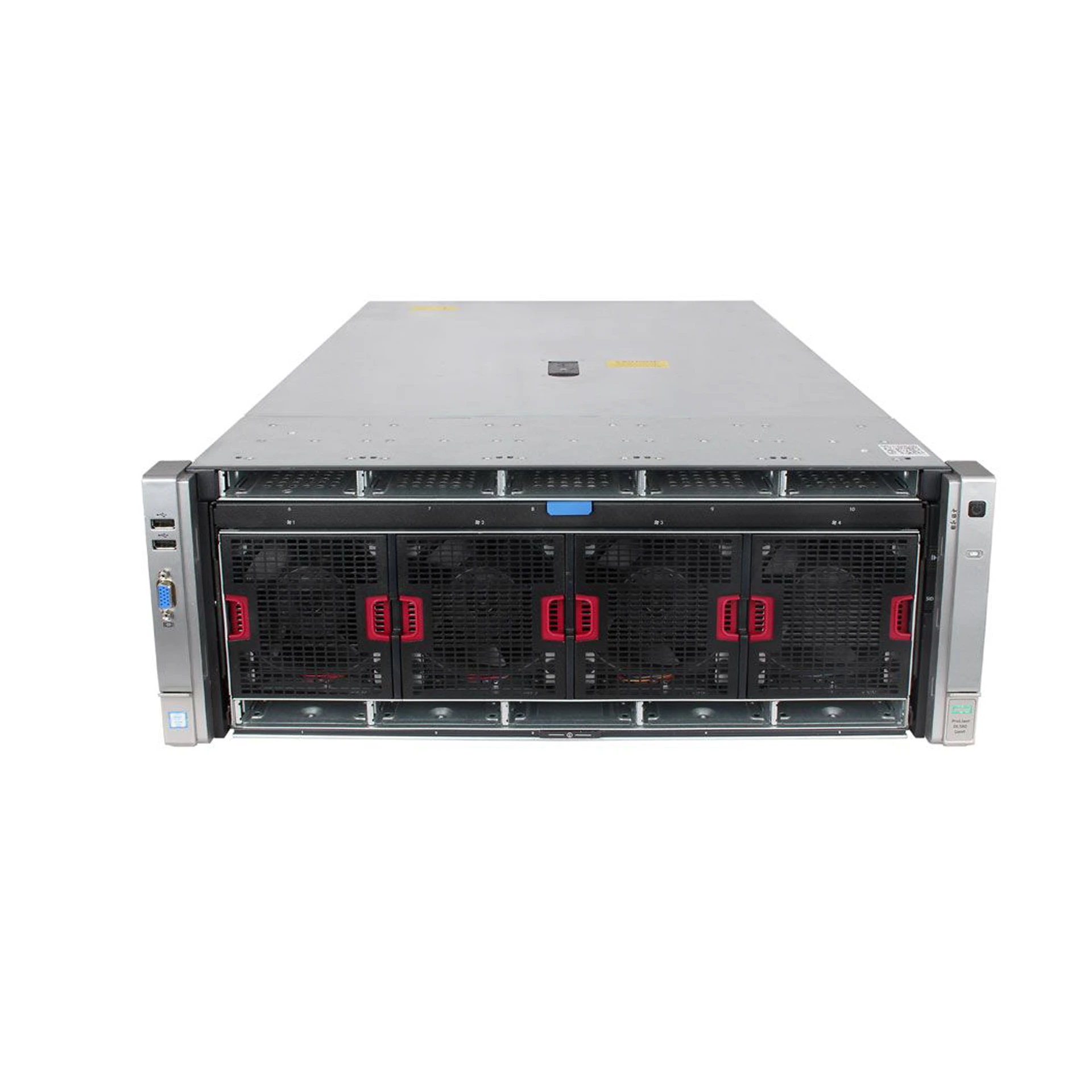

HPE ProLiant DL580 Gen10 Server

The HPE ProLiant DL580 Gen10 server is a secure, highly expandable, 4P server with high-performance, scalability and availability in a 4U chassis. Supporting the Intel® Xeon® Scalable processors with up to a 45% [1] performance gain, the HPE ProLiant DL580 Gen10 server delivers greater processing power than previous generations. This provides up to 6 TB of 2933 MT/s memory with up to 82% greater memory bandwidth [2], up to 16 PCIe 3.0 slots, plus the simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). HPE Persistent Memory offers unprecedented levels of performance and better business outcomes for data-intensive workloads.The HPE ProLiant DL580 Gen10 server is the ideal server for business-critical workloads and general 4P data-intensive applications where the right performance is paramount.

Processor Type Intel

Processor Family Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series

Processor Core Available28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model

Processor Cache Installed13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, per processor, depending on model

Maximum Memory6.0 TB with 128 GB DDR4, depending on processor model 12.0 TB with 512 GB Persistent Memory, depending on processor model

Memory Slots48 DIMM slots maximum

Memory TypeHPE DDR4 SmartMemory and HPE Persistent Memory

Drive Supported48 maximum

Network ControllerOptional FlexibleLOM

Remote Management SoftwareHPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download) are included Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)

System Fan Features12 (11+1) Hot plug redundant standard

Expansion Slots16 maximum, for detailed descriptions reference the QuickSpecs

Storage ControllerHPE Smart Array S100i or HPE Smart Array Controllers, depending on model

Warranty Standard Statement3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Processor NameIntel® Xeon® Scalable processors

Processor Number4 or 3 or 2 or 1

Processor Speed3.6 GHz, maximum depending on processor

Standard Memory6.0 TB (48 X 128 GB) LRDIMM, 12.0 TB (24 X 512 GB) HPE Persistent Memory

Hard Drive Number (included)None ship standard

Form FactorRack (4U)

Weight (imperial)114 lb

Weight (metric)51.71 kg

Product Dimensions (imperial)6.88 x 17.54 x 29.60 in

Product Dimensions (metric)17.47 x 44.55 x 75.18 cm
