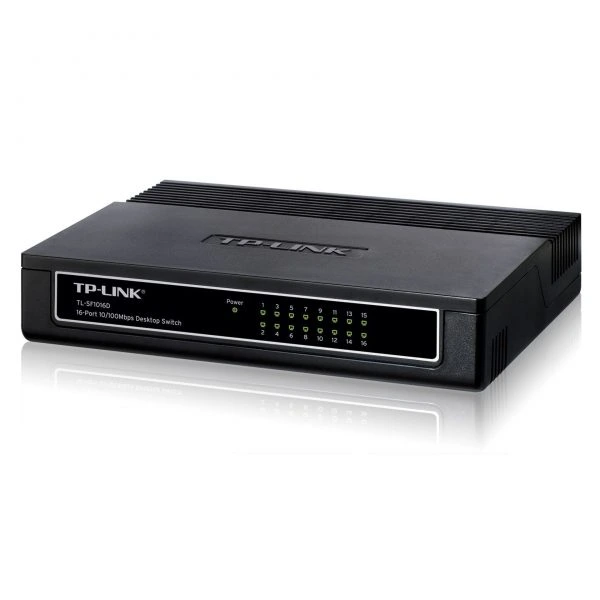

TP LINK TL-SF1016D

16-port 10/100M Desktop Switch

16 10/100M RJ45 ports, Plastic case

16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves the power up to 80%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop or wall-mounting design

Plug and play, no configuration required

HARDWARE FEATURES

Interface 16 × 10/100Mbps RJ45 Ports

Auto negotiation / Auto MDI/MDIX

Fan Quantity Fanless

Physical Security Lock No

External Power Supply External Power Adapter 100VAC ~ 240VAC

(Output: 9VDC / 0.6A)

Mac Address Table 2K

Dimensions ( W x D x H ) 7.9 × 5.6 × 1.6 in.

(200 × 142 × 40 mm)

Max Power Consumption 2W

Max Heat Dissipation 7.0 BTU/h

SOFTWARE FEATURES

Transfer Method Store and Forward

Advanced Functions Green Technology, saving power up to 80%

802.3x Flow Control, Back Pressure

OTHERS

Certification FCC, RoHs

Package Contents 16-Port 10/10Mbps Desktop Switch TL-SF1016D

Power Adapter

User Guide

Environment Operating Temperature: 0?~40? (32?~104?);

Storage Temperature: -40?~70? (-40?~158?);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
