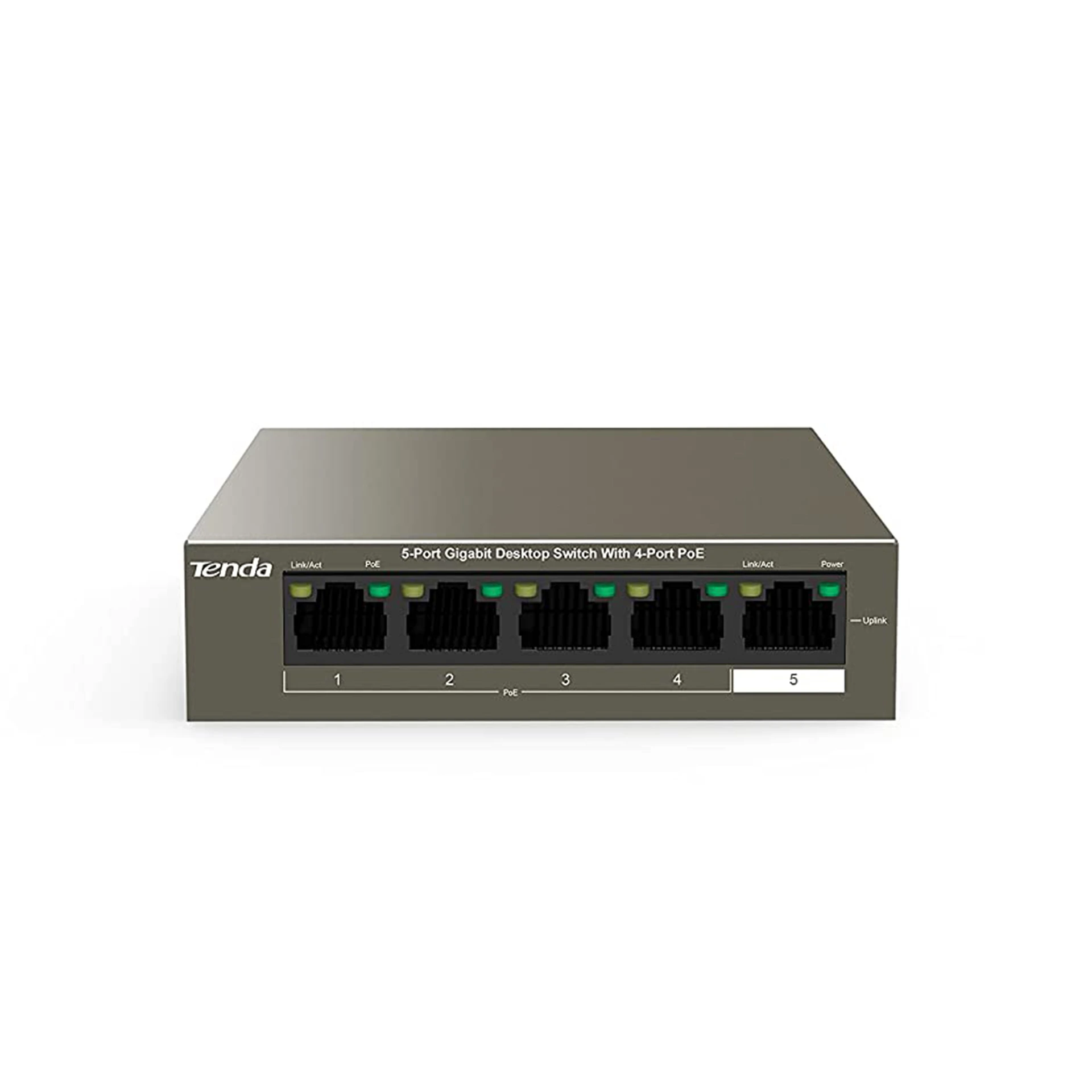

TENDA TEG1105P-4-63W

One-Key VLAN

If “VLAN mode” is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.

SPECIFICATIONS

Hardware

Network standards                                   IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at

LED Indicator                                            5* Link/Ack LED indicators,1 * Power LED indicator

Interfaces                                                    5*10/100/1000 Base-T Ethernet,Ports(Data/Power),1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media                                  Recommended: CAT5/5e UTP or better

Fan quantity                                                 N/A

Dimension                                                    100.0mmx100.0mmx27.0mm

Level of protection                                      Lightning protection for ports: 6kV,Lightning protection for power: 6kV

ESD: Air discharge: ±10kV,Contact discharge: ±8kV,Forwarding mode,Store-and-forward

Switch capacity                                            10 Gbps

Packet forwarding rate                               7.44Mpps

Buffer                                                             1M

MAC address table                                       2K

Jombo frame                                                 N/A

PoE budget                                                     Single port: AF: 15.4W, AT: 30W,Whole device: 58W

Power consumption                                       /

Input voltage                                                   100-240V AC 50/60Hz,51V /1.25A DC(Power Adapter )

Mounting                                                         Desktop mounting: support,Wall mounting: support,Rack mounting:non-support

Environment                                                  Operating Temperature: 0?~45?,Storage Temperature: -40?~70?,Operating Humidity: 10%~90% non-condensing,Storage Humidity: 5%~90% non-condensing

Certification                                                    FCC,CE,RoHS

Software

Funtions                                                            Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing.
