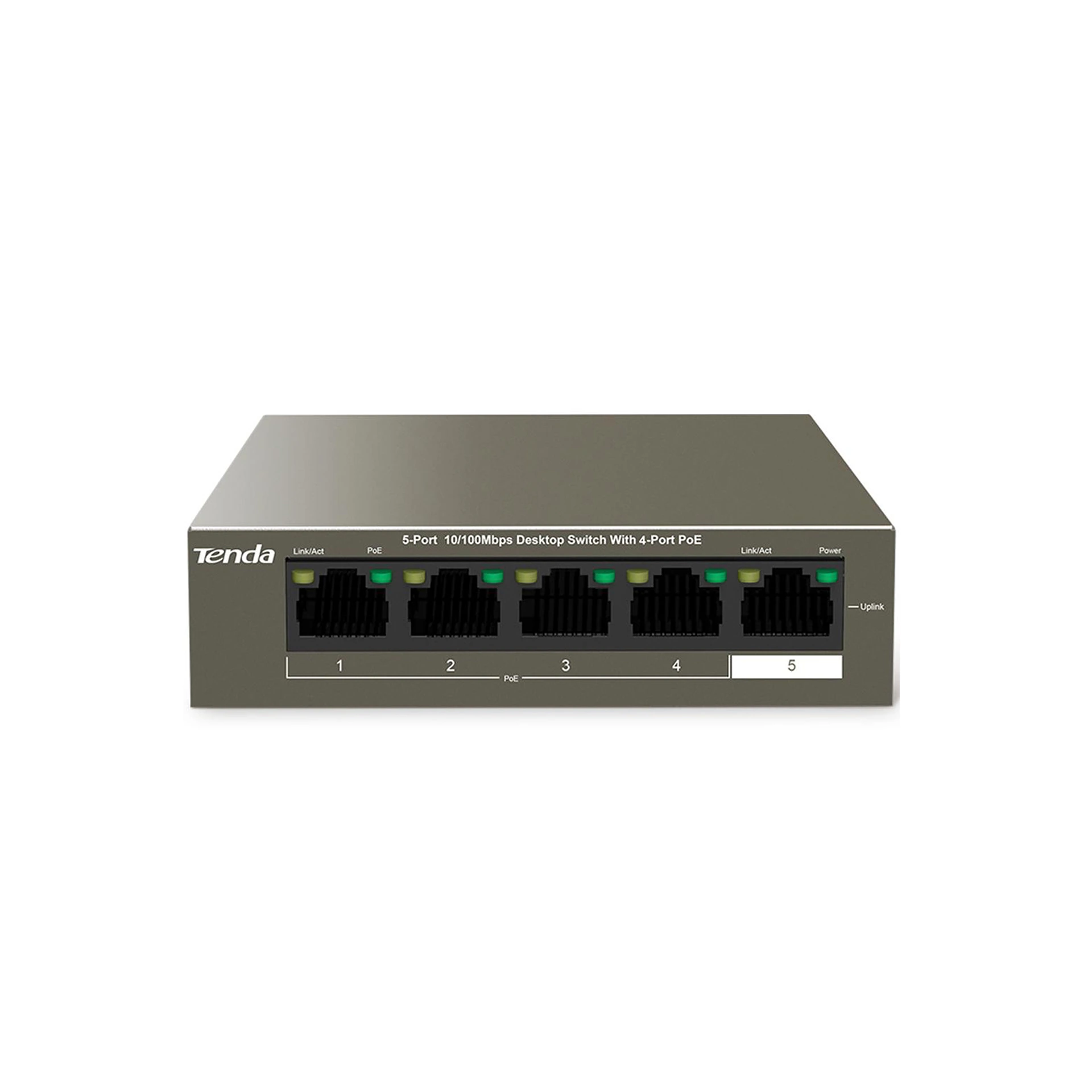

TENDA TEF1105P-4-38W

6KV lighting protection PoE switch is the real monitoring private switch

In the real project, AP or IP cameras are often installed outdoor or the higher position, which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring system or local area network stable, reliable service, protect the images transmission be normal.



Network standards                                   IEEE 802.3,IEEE 802.3u,IEEE 802.3x, IEEE 802.3af

LED Indicator                                            5* Link/Ack LED indicators,1 * Power LED indicator

Interfaces                                                   4*10/100 Base-TX Ethernet Ports(Data/Power),1*10/100 Base-TX

Ethernet Port(Data)

Transmission media                                 Recommended: CAT5/5e UTP or better

Fan quantity                                                N/A

Dimension                                                   100.0mmx100.0mmx26.0mm

Level of protection                                      Lightning protection for ports: 6kV,Lightning protection for power: 6kV

ESD: Air discharge: ±10kV,Contact discharge: ±8kV

Forwarding mode                                         Store-and-forward

Switch capacity                                             1Gbps

Packet forwarding rate                               0.74Mpps

Buffer                                                             448K

MAC address table                                      1K

Jombo frame                                                 N/A

PoE budget                                                    Single port: AF: 15.4W, AT: 30W,Whole device: 35W

Power consumption                                     /

Input voltage                                                100-240V AC 50/60Hz ,48V /0.8A DC(Power Adapter Output)

Mounting                                                       Desktop mounting: support,Wall mounting: support,Rack mounting:non-support

Environment                                                 Operating Temperature: 0?~45?,Storage Temperature: -40?~70?,Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification                                                    FCC?CE?RoHS


Funtions                                                          Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps).
