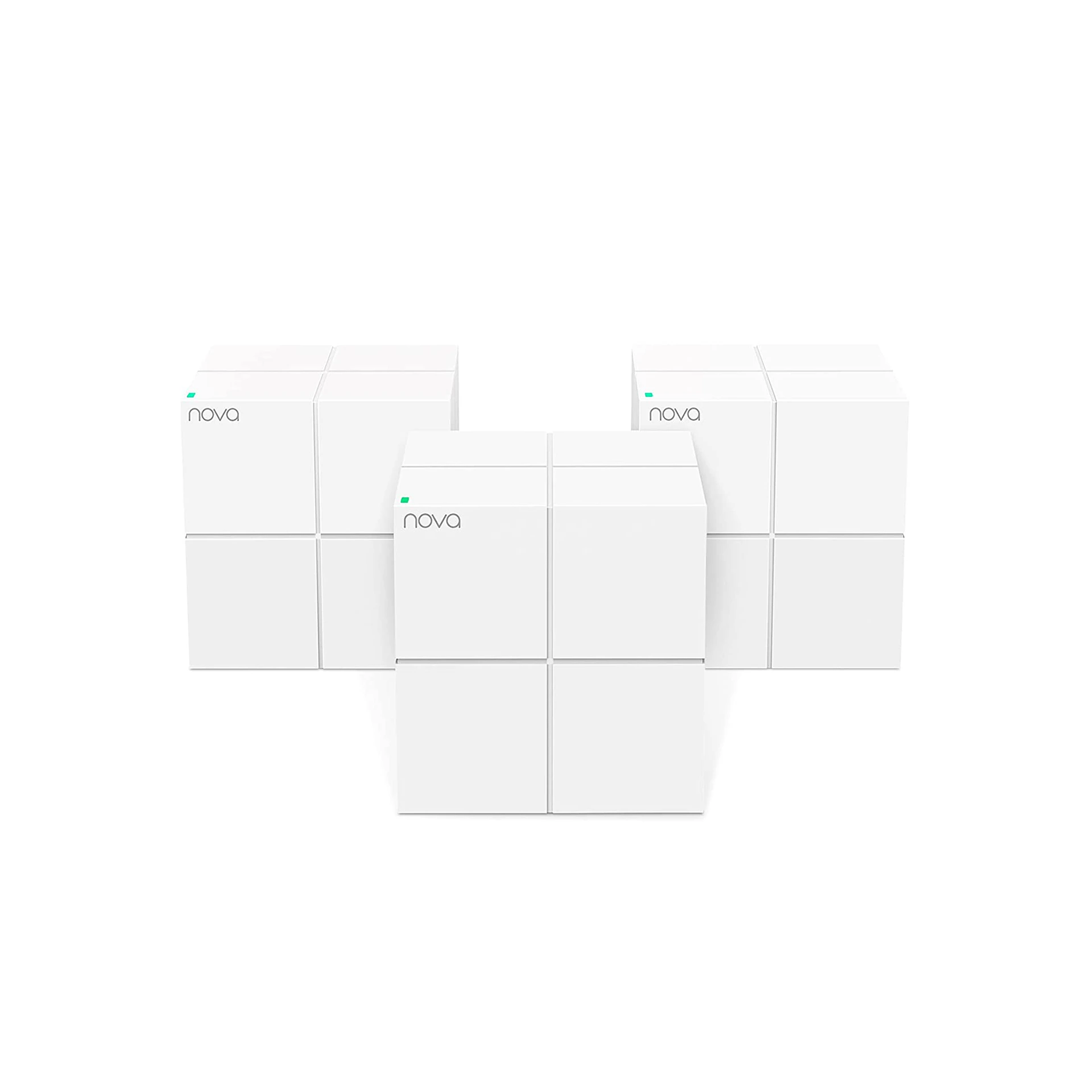

TENDA NOVA MW6

6000 sq.ft Coverage, Wi-Fi Connected Anywhere

No matter the structure, a set of three nova units could fully cover up to 6,000 sq.ft. There’s no hiding place for deadspots so you can enjoy a fast and consistent WiFi experience wherever you go.

Wave2.0 MU-MIMO + Beamforming Technology

Powered by the cutting-edge Wave2.0 MU-MIMO technology, nova can communicate with multiple wireless devices at the same time, and significantly outperforms traditional routers in communication efficiency.

It also comes with Beamforming technology to focus transmit power onto wireless devices for better signal strength.

Automatic network optimization to keep you online

A traditional network is unable to reconnect when the signal is lost. That won’t be an issue with nova, as it automatically maintains its network status. So, if a nova is disconnected it will reconnect to an available nova to keep you online.

SPECIFICATIONS

Hardware

Standard&Protocol                                  IEEE802.11a/b/g/n/ac,IEEE 802.3, IEEE 802.3u, IEEE 802.4ab

Ethernet Interface                                    2 x 10/100/1000Mbps RJ45 ports per node

Antenna                                                      2 x Internal antenna

Button                                                        1 x Reset Button

Power                                                         Input: 100-240V—50/60Hz, 0.6A,Output: 12V1A

Dimension                                                 100 x 100 x 100mm (3.94 x 3.94 x 3.94in)

LED Indicator                                            1 x Tri-color LED,Indicator(Green,Yellow,Red)

Wireless

Wireless Standard                                       IEEE802.11a/b/g/n/ac (WiFi 5 wave 2)

Wireless roaming                                        Comply with IEEE802.11k/v/r

Mesh network Standard                            IEEE802.11s

Rate                                                               2.4GHz: 300Mbps, 5GHz: 867Mbps

Frequency                                                        2.4~2.4835GHz, 5.15~5.25GHz, 5.725~5.85GHz

Transmission Power                                   CE: <20dBm(2.4G),<23dBm(5G)

Basic Features                                               SSID Broadcast,Beam Forming,MU-MIMO,AP Steering,Band Steering

Wireless Security                                           WPA-PSK/WPA2-PSK(default)

Software

Operating Mode                                                  Router Mode,Bridge Mode

Internet Connection Type                                PPPoE, Dynamic IP, StaticIP,PPPoE(Russia),PPTP(Russia),L2TP(Russia)

DHCP Server                                                       DHCP Server, DHCP Client List

Virtual Server                                                      Port Forwarding, UPnP

Parental Control                                                 Client Filter

Firewall                                                                 Forbid TCP/UDP flood attack

VPN                                                                       PPTP/L2TP/IPsec pass through

DNS                                                                       Support manually setting DNS server

Special Features

Smart QoS (Gaming, Video & Audio, Download)

Others

Auto-sensing internet connection

Support App management and Remote management

Guest Network

Firmware upgrade online
