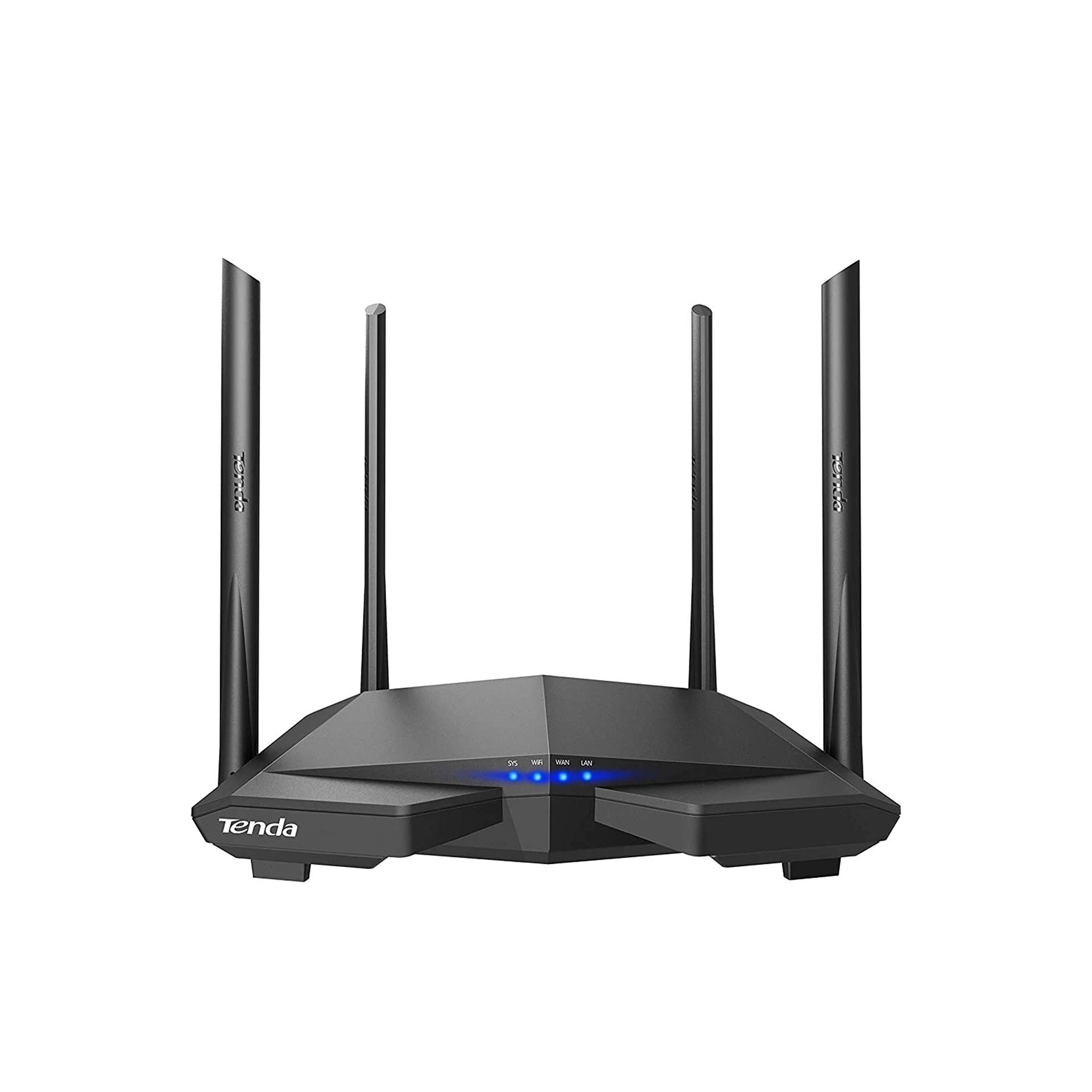

With Gigabit speeds complaint with IEEE802.11ac, the TENDA AC6 smart dual-band WiFi router offers throughput as high as 1167Mbps.

Powered with the latest features including beamforming+ technology and the innovative MU-MIMO, that’s just the start. With the 28nm CPU, independent power amplifiers, four 5dBi high-gain antennas, you are assured to have an uninterrupted gaming experience and 4K video streaming.

AC6 has great eco credentials too. With a power saving function, App-based management and migration of PPPoE user credentials allows for a smarter and eco-friendly digital life.

Main Features

• 11ac speed up to 1167Mbps (5GHz: 867Mbps + 2.4GHz: 300Mbps)

• Realtek chipset for stable and fast WiFi connection

• High powered amplifiers and external antennas for whole-home coverage

• Beamforming+ for longer range of IEEE802.11ac-compliant WiFi clients

• Innovative MU-MIMO technology for more connected clients

• Smart WiFi Schedule for lower power consumption

• Migration PPPoE user name and password for hassle-free configuration



Standard&Protocol                                         IEEE802.3, IEEE802.3u

Interfaces                                                          1*10/100Mbps WAN port,3*10/100Mbps LAN ports

Antenna                                                             4*5dBi external antennas

Button                                                               1*WiFi on/off, 1* Reset/WPS button

Power                                                                 Input:100-240V—50/60Hz, 0.2A,Output:DC 9V1A

Dimension                                                         220mm*141.5mm*49mm(L*W*H)

LED Indicator                                                   SYS*1,WAN*1, LAN*1, 2.4G*1, 5G*1,WPS*1


Wireless Standard                                             IEEE 802.11ac/a/n @5GHz,IEEE 802.11b/g/n @2.4GHz

Data Rate                                                              5GHz: 867Mbps,2.4GHz: 300Mbps

Frequency                                                             Simultaneous dual band 2.4 & 5GHz

Transmission Power                                           CE:  <20dBm(2.4G),<23dBm(5G),FCC:  <30dBm

Basic Features                                                     SSID Broadcast: Enable/Disable,Transmission Power: high,

medium, low Beamforming,MU-MIMO

Wireless Security                                               WPA-PSK/WPA2-PSK, WPA/WPA2,Wireless Security:

Enable/Disable,WPS(WiFi Protected Set-up) fast encryption


Internet Connection Type                                 PPPoE, Dynamic IP, Static IP, PPPoE(Russia),


Operating Mode                                                  Wireless Router Mode,Universal Repeater Mode,WISP Mode

DHCP Server                                                        Wireless Router Mode ,Universal Repeater Mode,WISP Mode,

Virtual Server                                                       Port Forwarding,DMZ Host,UPnP

Security                                                                Client Filter,Parental Control(support black list and white

list),Remote Web Management

Firewall                                                                Forbid UDP flood attack,Forbid TCP flood attack,Forbid flood

attack,Forbid WAN PING from internet

DDNS                                                                   Support DynDNS, Oray.com, 88ip

VPN                                                                      IPsec pass through,PPTP pass through,L2TP pass through,PPTP

client,L2TP client

Special Features                                                 PPPoE Username/password Clone,Smart WiFi Schedule,Smart

Power Saving, Smart LED on/off,Tenda Cloud,Tenda App

Others                                                                  Bandwidth Control,Guest Network,IPTV,MAC Clone,System

Log,Backup & Restore configurations,Firmware upgrade online,Firmware upgradeable via browser


Temperature                                                         Operating Temperature: 0? ~ 40?,Storage Temperature: -40? ~


Humidity                                                                Operating Humidity:10% ~ 90% RH non-condensing,Storage

Humidity: 5% ~ 90%RH non-condensing.

Default Settings                                                    Default Access: tendawifi.com or

Certification                                                          CE/FCC/RoHS

EIRP Power (Max)                                                2.400-2.4835GHz: 19.95dBm (EIRP),5.150-5.250GHz: 22.90dBm


Package Contents                                                 AC1200 Smart Dual-Band WiFi Router.Power Adapter,Install

Guide,Ethernet Cable
