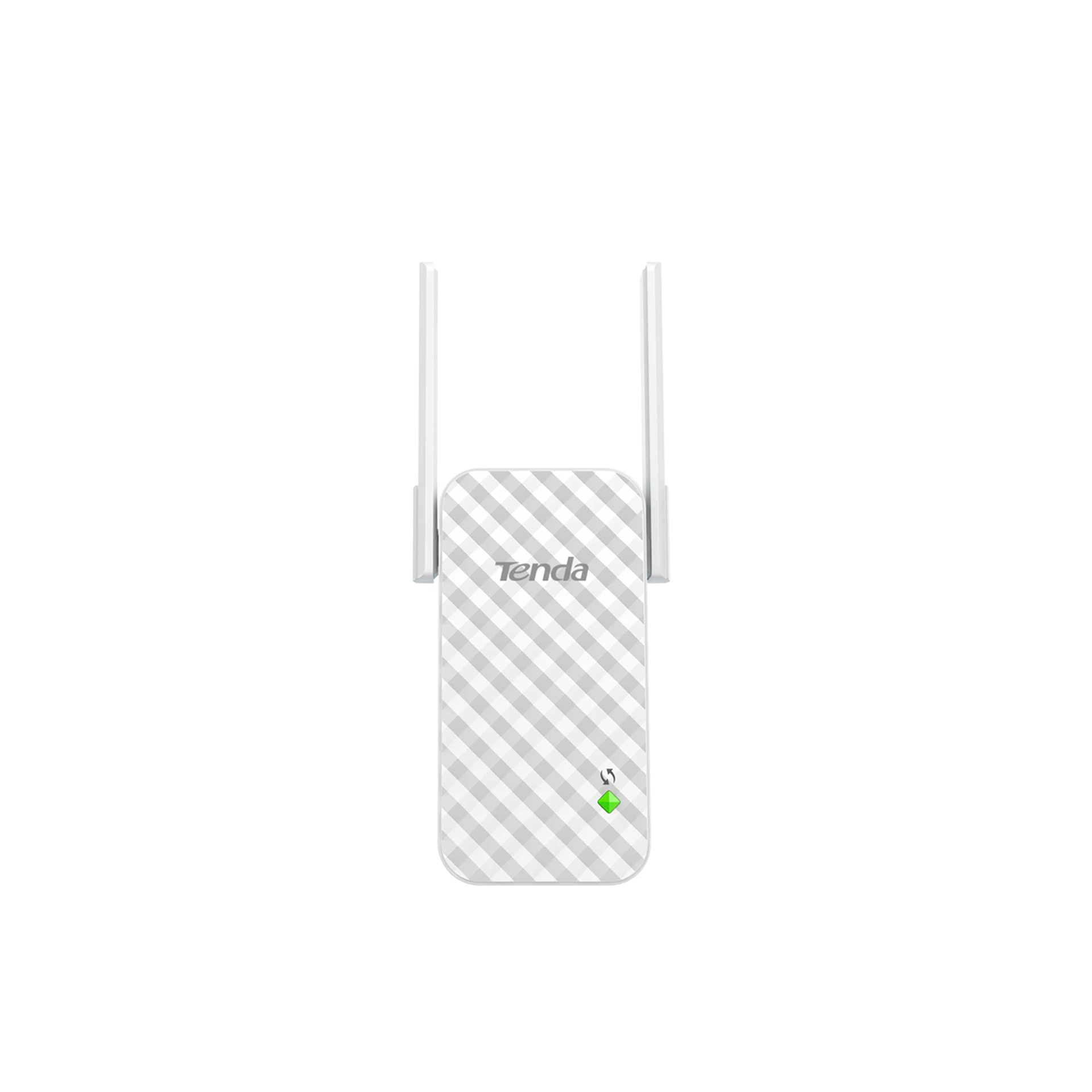

A9 is a wireless N300 universal range extender, specially designed to extend the exisiting WiFi coverage and improve the signal strength. With one button extension, smart signal LED, wall-mount design and universal compatibility, it is easy for users to boost wireless networking. A9 is an ideal choice for you to eliminate WiFi dead zones and optimize your networking.



Interfaces                                    –

Antenna Type                           2 * External 3dBi omni-directional antenna

Button                                         1 * WPS Button,1 * Reset Button

LED Indicator                           1 * Signal/Power/WPS LED

Power Supply                             5V1A, built-in

Power Consumption                 3.8W (max power consumption)

Dimension                                  111mm*56mm*47.7mm(L x W x H)


Wireless Standard                      IEEE802.11b,IEEE 802.11g, IEEE 802.11n

Frequency                                     2.4 GHz

Data Rate                                      2.4GHz: Up to 300Mbps

RSSI                                               2.4 GHz,11b-1M:-96dBm,11g-54M:-77dBm,11n-20M-MCS7:-75dBm,11n-40M-


Transmission Power                  <20dBm

Wireless Modes                          Repeater Mode

Wireless Security                        Default encryption mode: Mix WPA-PSK/WPA2-PSK,WPA algorithm: TKIP


Certification                                  CE, FCC,RoHS

Plug Type                                       US,EU,UK

Package Contents                         1 * N300 WiFi Range Extender ,1 * Quick Installation Guide

System Tool                                  Firmware upgrade, Restore factory settings, Login password, and Reboot

Environment                               Operating Temperature: 0?~40?,Storage Temperature: -40?~70?,Operating

Humidity: (10~90)% RH, non-condensing

Related Products                         N301?F3?F6
