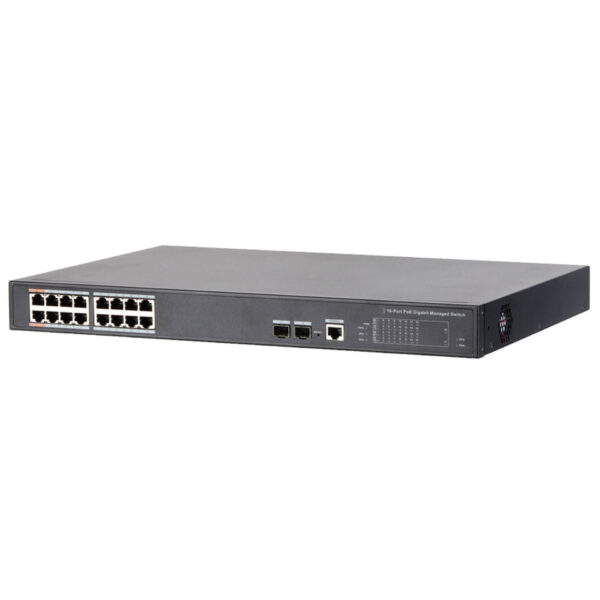

DAHUA DH-PFS4218-16GT-240


· Layer 2 network management PoE switch

· Support IEEE802.3af, IEEE802.3at standard

· Support Hi-PoE 60W

· Network Redundancy: STP/RSTP/MSTP

· Support IPv4/IPv6, and DHCP

· Network management based on SNMP

· Configuration: Web, Telnet, CLI Command

· QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism

· Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/

v3, HTTPS, and SSH/SSL

· Large data cache(4M), real-time transmission

· MAC auto study and aging, MAC address list capacity is 8K

· EMC high protection design

Technical Specification

Model DH-PFS4218-16GT-240

Ethernet Port 16*10/100/1000 Base-T (PoE power supply)

2*100/1000 Base-X

RS232 Serial Console 1*RS232 in RJ45 connector with console cable,

115.2Kbps, 8,N,1

PoE Power Consumption Port1 and port 2 support Hi-PoE 60W

Each power =30W, Total=240W

PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity 52Gbps

Packet Forwarding Rate 23.81Mpps

Packet Buffer Memory 4Mb

Application Humidity 5%~95%

Power AC100-240V, 50/60Hz

Lightning Protection Common Mode 2KV

Differential Mode 1KV

Working Temperature -10°C~55°C

Dimension(W×D×H) 440mm x300mm x44mm
