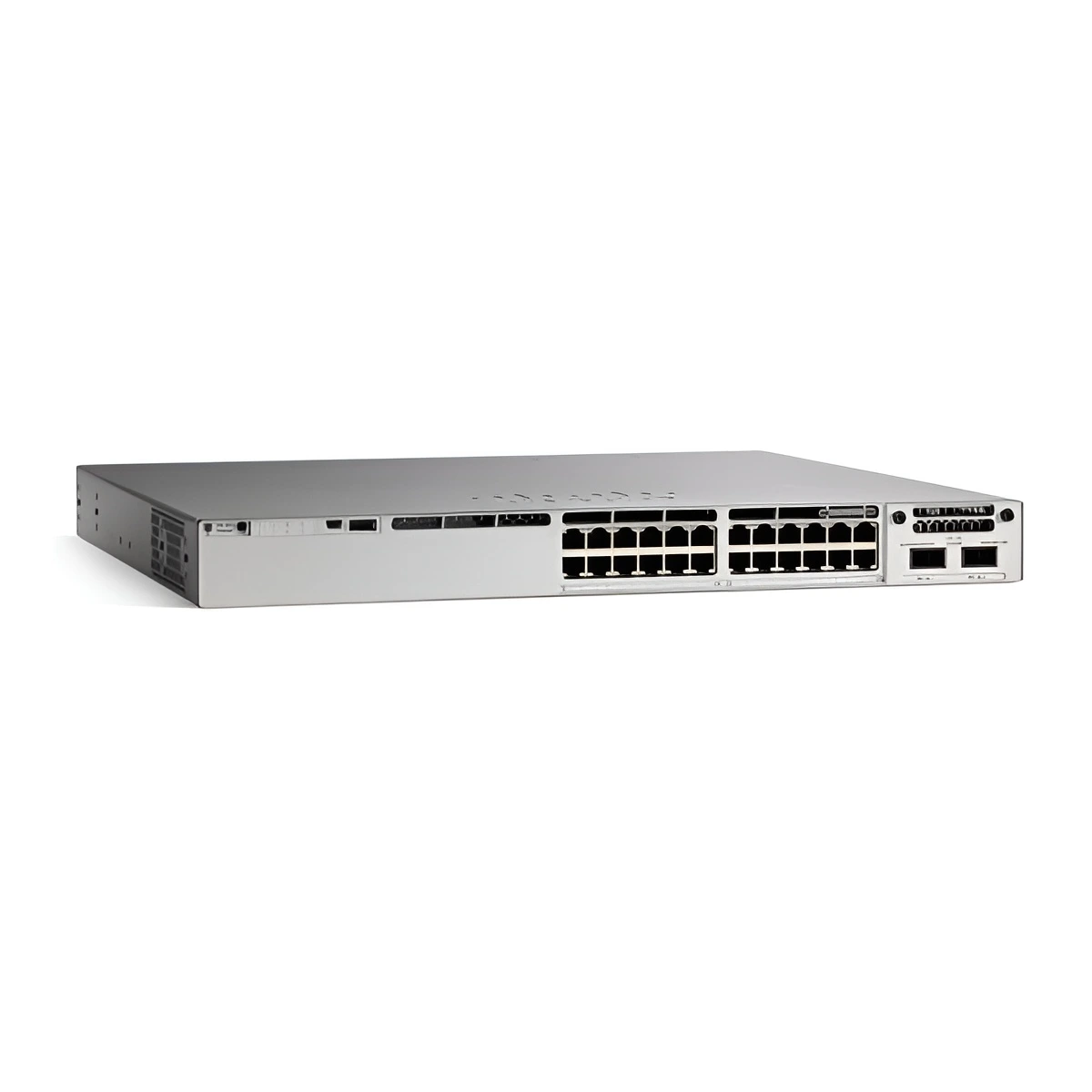

CISCO 9300-24T-E

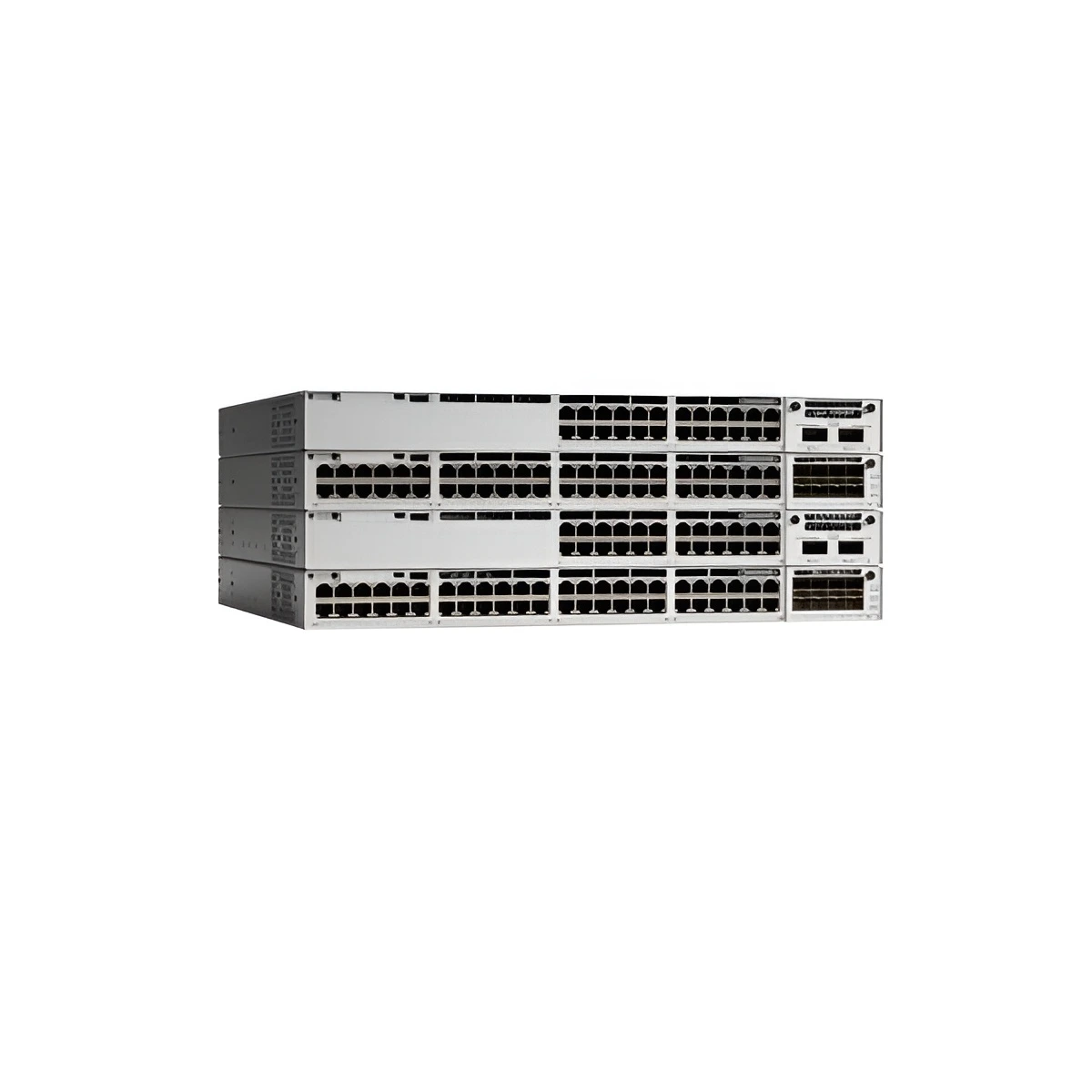

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

C9300-24T-E Specification
Part NumberC9300-24T-E
Product DescriptionCatalyst 9300 24-port data only,
Network Essentials
Total 10/100/1000 or
Multigigabit copper ports
24
Default AC power supply350W AC
Available PoE power--
Cisco StackWise-480Yes
Cisco StackPowerYes
Default power supplyPWR-C1-350WAC-P/2
Switching capacity208 Gbps on 24-port Gigabit
Ethernet model
Stacking bandwidth480 Gbps
Total number of MAC
addresses
32,000
Total number of IPv4
routes (ARP plus
learned routes)
32,000 (24,000 direct routes and
8000 indirect routes)
IPv4 routing entries32,000
IPv6 routing entries16,000
Multicast routing scale8000
QoS scale entries5,120
ACL scale entries5,120
Packet buffer per SKU16 MB buffer for 24- or 48-port
Gigabit Ethernet models
FNF entries64,000 flow on 24- and 48-port
Gigabit Ethernet models
DRAM8 GB
Flash16 GB
VLAN IDs4000
Total Switched Virtual
Interfaces (SVIs)
2000
Jumbo frames9198 bytes
Total routed ports per 9300
Series stack
208
Wireless bandwidth per
switch
Up to 48 Gbps on 24-port Gigabit
Ethernet model
Forwarding rate154.76 Mpps
Dimensions (H x W x D)1.73 x 17.5 x 17.5 Inches
Weight16.33 Pounds
Mean time between
failures (hours)
299,000
Safety certifications? UL 60950-1
? CAN/CSA-C222.2 No. 60950-1
? EN 60950-1
? IEC 60950-1
? AS/NZS 60950.1
? IEEE 802.3
Electromagnetic emissions
certifications
? 47 CFR Part 15
? CISPR22 Class A
? EN 300 386 V1.6.1
? EN 55022 Class A
? EN 55032 Class A
? CISPR 32 Class A
? EN61000-3-2
? EN61000-3-3
? ICES-003 Class A
? TCVN 7189 Class A
? V-3 Class A
? CISPR24
? EN 300 386
? EN55024
? TCVN 7317
EnvironmentalReduction of Hazardous
Substances (ROHS) 5
