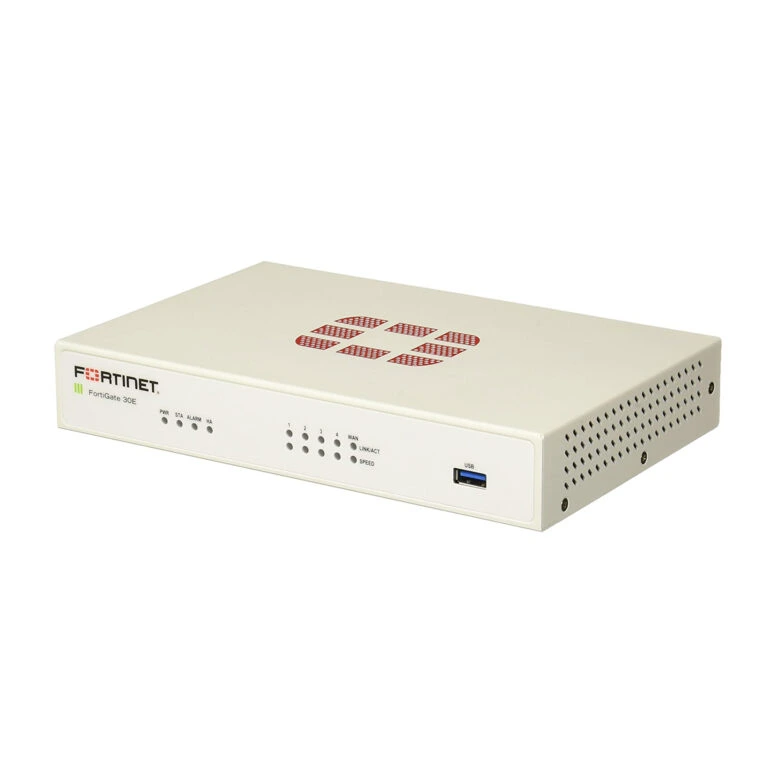

FORTINET FORTIGATE 30E FIREWALL

The FortiGate 30E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.

Secure SD-WAN

Unified Threat Management

Interfaces

1. USB Port

2. Console Port

3. 1x GE RJ45 WAN Port

4. 4x GE RJ45 Switch Ports

Hardware Specifications

GE RJ45 Switch Ports 4

GE RJ45 WAN Port 1

USB Port 1

Console (RJ45) 1

Wireless Interface – 802.11 a/b/g/n (Only in FORTIWIFI 30E)

System Performance — Enterprise Traffic Mix

IPS Throughput 2 300 Mbps

NGFW Throughput 2, 4 200 Mbps

Threat Protection Throughput 2, 5 150 Mbps

System Performance

Firewall Throughput 950 Mbps

Firewall Latency (64 byte UDP packets) 130 µs

Firewall Throughput (Packets Per Second) 180 Kpps

Concurrent Sessions (TCP) 900,000

New Sessions/Second (TCP) 15,000

Firewall Policies 5,000

IPsec VPN Throughput (512 byte) 1 75 Mbps

Gateway-to-Gateway IPsec VPN Tunnels 200

Client-to-Gateway IPsec VPN Tunnels 250

SSL-VPN Throughput 35 Mbps

Concurrent SSL-VPN Users

(Recommended Maximum, Tunnel Mode)

100

SSL Inspection Throughput (IPS, avg. HTTPS) 3 125 Mbps

SSL Inspection CPS (IPS, avg. HTTPS) 3 120

SSL Inspection Concurrent Session

(IPS, avg. HTTPS) 3

45,000

Application Control Throughput (HTTP 64K) 2 400 Mbps

CAPWAP Throughput (HTTP 64K) 850 Mbps

Virtual Domains (Default / Maximum) 5 / 5

Maximum Number of FortiSwitches Supported 8

Maximum Number of FortiAPs

(Total / Tunnel Mode)

2 / 2

Maximum Number of FortiTokens 500

Maximum Number of Registered FortiClients 200

High Availability Configurations Active/Active, Active/Passive, Clustering

Dimensions

Height x Width x Length (inches) 1.61 x 8.27 x 5.24

Height x Width x Length (mm) 41 x 210 x 133

Weight 1.982 lbs (0.899 kg) (FORTIWIFI 30E – 2.008 lbs 0.911 kg)

Form Factor Desktop

Environment

Power Required 100–240V AC, 50–60 Hz (External DC Power

Adapter, 12 VDC)

Maximum Current 100V / 0.6A, 240V / 0.4A

Power Consumption (Average / Maximum) 13 / 15 W

Heat Dissipation 52 BTU/h

Operating Temperature 32–104°F (0–40°C)

Storage Temperature -31–158°F (-35–70°C)

Humidity 10–90% non-condensing

Noise Level Fan-less 0 dBA

Operating Altitude Up to 7,400 ft (2,250 m)

Compliance

Regulatory Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
