WISENET XNV-L6080

SAMSUNG XNV-L6080

XNV-L6080XNV-L6080

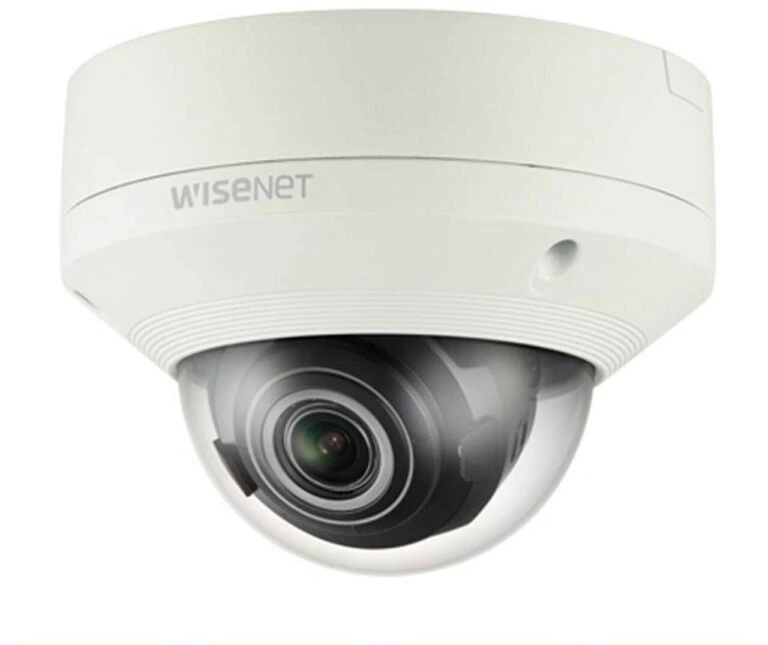

2MP Outdoor Dome

Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps, motorized vari-focal lens 3.1x (3.2~10mm) (109°~33.2°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, true D/N, single SD card, hallway view, HLC, defog detection, DIS, PoE, IP66, IK10, -40°C ~ +55°C (-40°F ~ +131°F)


  • VIDEO
  • Imaging Device 1/2.8? 2M CMOS
  • Total Pixels 1,945(H) x 1,109(V) 2.16M
  • Effective Pixels 1,945(H) x 1,097(V) 2.13M
  • Scanning System Progressive Scan
  • Min. Illumination Color : 0.1Lux@F1.6, B/W : 0.01Lux@F1.6
  • S / N Ratio 50dB
  • Video Out CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
  • USB : micro USB type B, 1280 x 720 for installation
  • LENS
  • Focal Length (Zoom Ratio) 3.2~10mm (3.1x) motorized varifocal
  • Max. Aperture Ratio F1.6(Wide) ~ F2.9(Tele)
  • Angular Field of View H : 109.0°(Wide) ~ 33.2°(Tele) / V : 57.4°(Wide) ~ 18.7°(Tele) / D : 132.0°(Wide) ~ 38.0°(Tele)
  • Min. Object Distance 0.5m (1.64ft)
  • Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
  • Lens / Mount Type DC auto iris / Board-in type
  • PAN / TILT / ROTATE
  • Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
  • OPERATIONAL
  • Camera Title
  • Off / On (Displayed up to 85 characters)
  • – W/W : English / Numeric / Special characters
  • – China : English / Numeric / Special / Chinese characters
  • – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),
  • Transparency, Auto scale by resolution
  • Day & Night Auto (ICR) / Color / B/W / External / Schedule
  • Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
  • Wide Dynamic Range 120dB
  • Contrast Enhancement SSDR (Off / On)
  • Digital Noise Reduction SSNRV (2D + 3D noise filter) (Off / On)
  • Digital Image Stabilization Off / On
  • Defog Off / Auto (Input from fog detection) / Manual
  • Motion Detection Off / On (8ea, 8point polygonal zones), Handover
  • Privacy Masking Off / On (32ea, polygonal zones)
  • – Color : Gray / Green / Red / Blue / Black / White – Mosaic
  • Gain Control Off / Low / Middle / High
  • White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
  • Contrast Level adjusment
  • LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
  • Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
  • Digital PTZ 24x, Digital PTZ (Preset, Group)
  • Flip / Mirror Off / On, Hallway view : 90°/270°
  • Video Analytics Tampering, Defocus detection, Motion detection
  • Alarm Triggers Motion detection, Video analytics, Network disconnect
  • Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
  • SDXC) or NAS recording at event triggers
  • Pixel Counter Support
  • NETWORK
  • Ethernet RJ-45 (10/100BASE-T)
  • Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
  • Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
  • 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
  • Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
  • Smart Codec Manual mode (Area-based : 5ea)
  • WiseStream II Support
  • Video Quality Adjustment H.265 / H.264, MJPEG : Target Bitrate Level Control
  • Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
  • Streaming Capability Multiple streaming (Up to 5 profiles)
  • IP IPv4, IPv6
  • Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
  • SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
  • Security HTTPS(SSL) login authentication, Digest login authentication,
  • IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
  • Streaming Method Unicast / Multicast
  • Max. User Access 20 users at unicast mode
  • Edge Storage
  • SD/SDHC/SDXC 1slot (up to 256GB)
  • – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded.
  • NAS (Network Attached Storage), Local PC for instant recording
  • Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
  • Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
  • Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Web Viewer
  • Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
  • Supported Browser : Google Chrome 63, MS Edge 41,MS Internet Explorer 11,
  • Mozilla Firefox 57 (Window 64bit only), Apple Safari 11
  • (Mac OS X only)
  • Central Management Software SmartViewer, SSM
  • ENVIRONMENTAL
  • Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
  • Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  • Ingress Protection / Vandal Resistance IP66 / IK10
  • ELECTRICAL
  • Input Voltage / Current PoE(IEEE802.3af, Class3)
  • Power Consumption Max. 8W, Typical 5W
  • MECHANICAL
  • Color / Material Ivory (NCS S 0502-Y) / Aluminum
  • Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3? x
