WISENET XNV-6120RS

SAMSUNG XNV-6120RS

XNV-6120RS

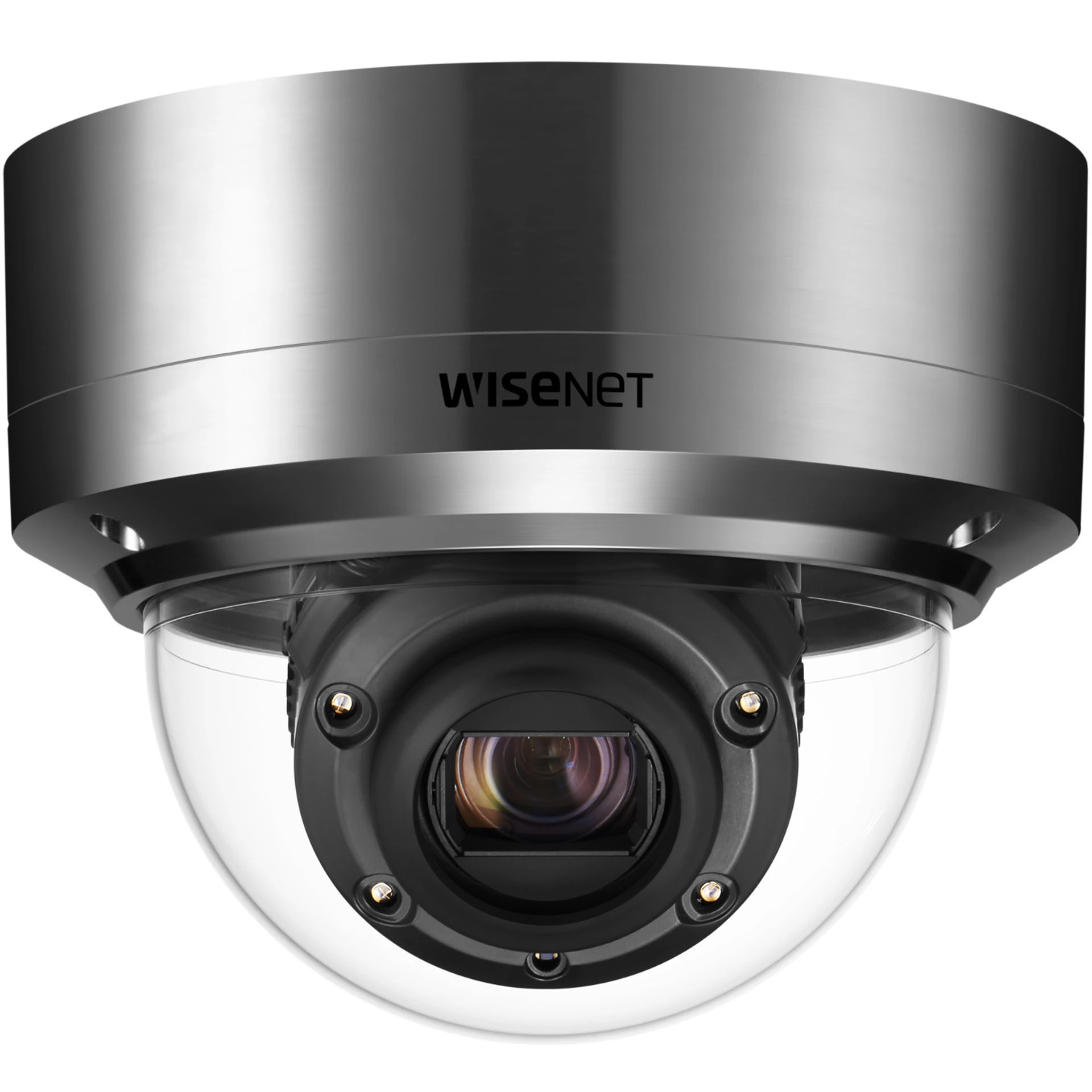

2MP 12X IR Stainless steel Dome

Wisenet X powered by Wisenet 5 network IR stainless steel dome camera, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 229', true D/N, dual SD card, hallway view, HLC, defog detection, DIS(Gyro), 12VDC/24VAC/PoE, IP66, IK10, NEMA 4X, -40°C ~ +55°C (-40°F ~ +131°F)

• VIDEO
• Imaging Device 1 / 2.8? 2M CMOS
• Total Pixels 1945 (H) x 1109 (V) 2.16M
• Effective Pixels 1945 (H) x 1097 (V) 2.13M
• Scanning System Progressive Scan
• Min. Illumination Color : 0.03 Lux (1 / 30sec, F1.6), B/W : 0 Lux (IR LED On)
• S / N Ratio 50dB
• Video Out CVBS : 1.0 Vp-p / 75O composite, 720×480 (N), 720×576 (P), for installation
• USB : Micro USB type B, 1280×720, for installation
• LENS
• Focal Length (Zoom Ratio) 5.2~62.4mm (Optical 12X)
• Max. Aperture Ratio 1.6 (Wide) ~ 3.0 (Tele)
• Angular Field of View H: 54.58°(Wide) ~ 5.30°(Tele) / V: 32.19 (Wide) ~ 3.00°(Tele) / D: 61.40°(Wide) ~ 6.06°(Tele)
• Min. Object Distance 2.1m (6.89ft)
• Focus Control Auto / Manual / Oneshot AF
• Lens Type DC Auto Iris
• Mount Type Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 75° / 0° ~ 355°
• OPERATIONAL
• IR Viewable Length 70m (229.66ft)
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency,
• Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNR5 (2D+3D Noise Filter) (Off / On)
• Digital Image Stabilization Off / On (Built-in gyro sensor)
• Defog Auto / Manual / Off
• Motion Detection Off / On (8ea, 8 point polygonal zones), Handover
• Privacy Masking
• Off / On (32ea, polygonal zones)
• – Color : Grey / Green / Red / Blue / Black / White
• – Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Contrast Level adjustment
• LDC On / Off (5 levels with Min / Max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1 / 12,000sec)
• Digital Zoom 24x
• Preset 300 ea
• Flip / Mirror On / Off, Hallway view : 90° / 270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line,
• Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection,
• Digital auto tracking, Sound classification
• Alarm I / O Input 1ea / Output 1ea
• Alarm Triggers Alarm input, Motion detection, Video & audio analytics, Network disconnect
• Alarm Events
• File upload via FTP, E-Mail / Notification via E-Mail /
• Local storage (SD / SDHC / SDXC) or NAS recording at event triggers / External output /
