WISENET XNV-6011

SAMSUNG XNV-6011

XNV-6011

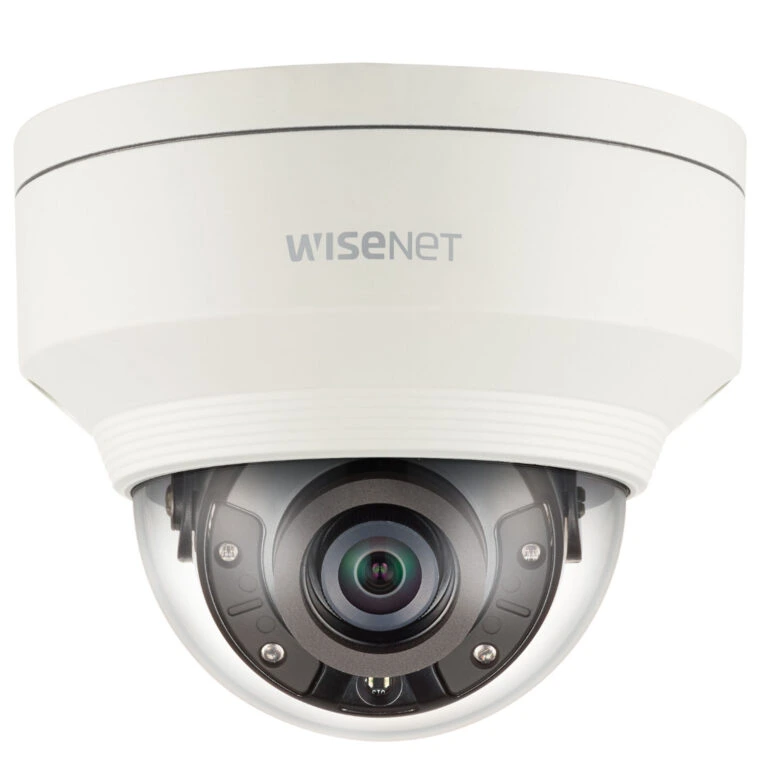

2MP outdoor Network compact d

Wisenet X powered by Wisenet 5 network outdoor compact vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off/on(120dB) or @30fps WDR on(150dB), 2.8mm fixed lens (112°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics, single SD card, hallway view, HLC, Defog detection, DIS, PoE, IP66,NEMA 4X, IK10

VIDEO

• Imaging Device 1/2.8? 2M CMOS
• Total Pixels 1,945(H) x 1,109(V) 2.16M pixels
• Eective Pixels 1,945(H) x 1,097(V) 2.13M pixels
• Scanning System Progressive Scan
• Min. Illumination Color : 0.055 Lux (1/30sec, F2.0)
• B/W : 0.055 Lux (1/30sec, F2.0)
• S / N Ratio 50dB
• VideoOutput CVBS : 1.0 Vp-p / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• USB : Micro USB type B, 1280 x 720, for installation
• LENS
• Focal Length (Zoom Ratio) 2.8mm xed
• Max. Aperture Ratio F2.0
• Angular Field ofView H : 112°/ V : 62° / D : 130°
• Min.Object Distance 0.2m (0.66ft)
• Focus Control Manual
• Lens/ Mount Type Fixed / Board-in Type
• PAN / TILT / ROTATE
• Pan / Tilt/ Rotate Range Pan : 0° ~ +353°/ Tilt : 0° ~ +59° / Rotate : 0° ~ +353°
• OPERATIONAL
• Camera Title
• O / On (Displayed up to 85 characters) – W/W : English / Numeric / Special characters – China : English / Numeric / Special / Chinese characters – Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (Electrical) / Color / B/W
• Backlight Compensation O / BLC / HLC (Masking / Dimming) / WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNR? (2D + 3D Noise Filter) (O / On)
• Digital Image Stabilization O / On
• Defog O / Auto (input from fog detection) / Manual
• Motion Detection O / On (8ea, 8point polygonal zones), Handover
• Privacy Masking O / On (32ea, polygonal zones) – Color : Grey / Green / Red / Blue / Black / White – Mosaic
• Gain Control O / Low / Middle / High
• White Balance ATW / AWC / Manual/Indoor / Outdoor (Included Mercury & Sodium)
• Contrast Level adjustment
• LDC O / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror O / On, Hallway view : 90° / 270°
• Video Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
• Virtual line, Enter/ Exit, (Dis) Appear, Face detection, Motion detection,
• Digital auto tracking, People counting, Heatmap, Queue management
• AlarmTriggers Motion detection, Video analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notication via E-mail,
• Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers,
• DPTZ preset
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100 BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (area-based : 5ea)
• WiseStream? Support
• VideoQuality Adjustment H.265 / H.264 / MJPEG : Target Bitrate Level Control
• Bitrate Control Method H.265 / H.264 : CBR OR VBR, MJPEG : VBR
• Streaming Capability Multiple Streaming (Up to 10 Proles)
• IP IPv4, IPv6
• Protocol TCP / IP, UDP /IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security
• HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address
• Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at Unicast Mode
• Edge Storage
• SD / SDHC / SDXC (256GB) – Motion Imagesrecorded in the SD / SDHC / SDXC memory card can be
• downloaded. NAS (Network Attached Storage), Local PC for Instant recording
• Application Programming Interface ONVIF Prole S/G, SUNAPI (HTTP API), Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese,
• Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• WebViewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin WebViewer – Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49
• (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer – Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only)
