WISENET XNO-6120R

SAMSUNG XNO-6120R

XNO-8020R

5MP IR Bullet

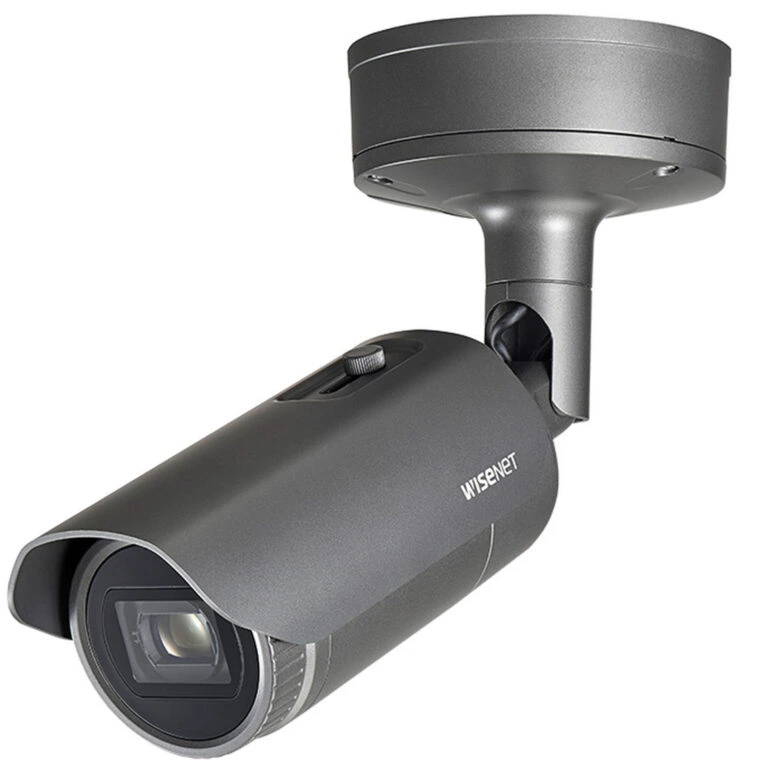

WiseNet X powered by WiseNet 5 network outdoor vandal bullet camera, Back box, 5MP @30fps WDR off/on, 3.7mm fixed lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X


XNO-8020R/8030R/8040R

VIDEO

  • Imaging Device 1/1.8? 6M CMOS
  • Total Pixels 3,096(H) x 2,094(V)
  • Eective Pixels 2,616(H) x 1,976(V)
  • Scanning System Progressive Scan
  • Min. Illumination Color : 0.2Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
  • S / N Ratio 50dB
  • VideoOut CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
  • USB : micro USB type B, 1280 x 720 for installation
  • LENS
  • Focal Length (Zoom Ratio) 3.7mm xed (XNO-8020R), 4.6mm xed (XNO-8030R), 7mm xed (XNO-8040R)
  • Max. Aperture Ratio F1.6
  • Angular Field of View H : 97.5° / V : 71.9°/ D : 126.2° (XNO-8020R), H : 77.9° / V : 57.9° / D : 98.7° (XNO-8030R),
  • H : 50.7° / V : 37.8° / D : 63.8° (XNO-8040R)
  • Min.Object Distance 0.4m (1.31ft)
  • Focus Control Manual
  • Lens/ Mount Type Fixed / Board-in type
  • OPERATIONAL
  • IRViewable Length 30m (98.43ft)
  • Camera Title
  • O / On (Displayed up to 85 characters) – W/W : English / Numeric / Special characters – China : English / Numeric / Special / Chinese characters – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
  • Transparency, Auto scale by resolution
  • Day & Night Auto (ICR)/ Color/ B/W / External / Schedule
  • Backlight Compensation O / BLC / HLC (Masking / Dimming), WDR
  • Wide Dynamic Range 120dB
  • Contrast Enhancement SSDR (O / On)
  • Digital Noise Reduction SSNRV (2D+3D noise lter) (O / On)
  • Digital Image Stabilization O / On
  • Defog O / Auto (Input from fog detection)/ Manual
  • Motion Detection O / On (8ea, 8point polygonal zones), Handover
  • Privacy Masking O / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
  • Gain Control O / Low / Middle / High
  • White Balance ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium)
  • Contrast Level adjusment
  • LDC (Lens Distortion Correction) O / On (5 levels with min / max)
  • Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
  • Digital PTZ 24x, Digital PTZ (Preset, Group)
  • Flip / Mirror O / On, Hallway view : 90°/270°
  • Video & Audio Analytics
  • Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
  • Virtual line, Enter/ Exit, (Dis)Appear, Audio detection, Face detection, Motion detection,
  • Digital auto tracking, Sound classication, Heatmap, People counting, Queue management
  • Alarm I/O Input 1ea / Output 1ea
  • AlarmTriggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
  • Alarm Events File upload via FTP, E-mail, Notication via E-mail, Localstorage (SD/SDHC/
  • SDXC) or NAS recording at event triggers, External output, DPTZ preset
  • Pixel Counter Support
  • NETWORK
  • Ethernet RJ-45 (10/100BASE-T)
  • Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
  • Resolution 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
  • 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
  • Max. Framerate H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
  • Smart Codec Manual mode (Area-based : 5ea)
  • WiseStream II Support
  • VideoQuality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
  • Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
  • Streaming Capability Multiple streaming (Up to 10 proles)
  • Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
  • AudioOut Line out, Max output level : 1Vrms
  • Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
  • G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
  • Audio Communication Bi-directional (2-way)
  • IP IPv4, IPv6
  • Protocol TCP/IP,UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP,NTP,HTTP,HTTPS, SSL/TLS,DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP,DNS,DDNS,QoS, PIM-SM,UPnP, Bonjour
  • Security HTTPS(SSL) login authentication, Digest login authentication
  • IP address ltering, User accesslog, 802.1X authentication (EAP-TLS, EAP-LEAP)
  • Streaming Method Unicast / Multicast
  • Max. User Access 20 users at unicast mode
  • Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) – Continuousrecording (1stslot to 2nd slot)
  • NAS (Network Attached Storage), Local PC for instant recording
  • Application Programming Interface ONVIF prole S/G, SUNAPI (HTTP API), Wisenet Open Platform
  • Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
  • Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • WebViewer
  • Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10
