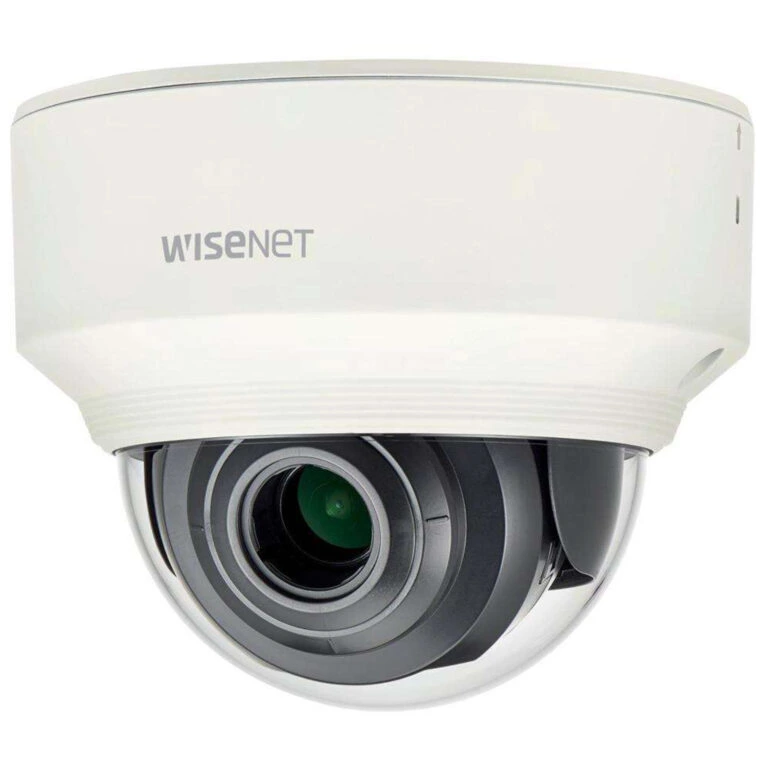

WISENET XND-8030R

SAMSUNG XND-8030R

XND-8030R

5M H.265 NW IR Dome Camera


• Built-in 3.7mm/4.6mm/7.0mm fixed lens

• Max. 30fps@all resolutions (H.265/H.264)

• Loitering, Directional detection, Fog detection

• Digital auto tracking, Sound classification, Heatmap

• People counting, Queue management, Tampering

• Motion detection, Handover

• Dual SD slots (Max. 512GB), WiseStream II support

• IR viewable length 30m, IK08


Samsung XND-8030R quantity 1



Video

  • Imaging Device 1/1.8? 6MP CMOS
  • Effective Pixels 2616(H)x1976(V)
  • Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
  • BW: 0Lux(IR LED on)
  • Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
  • USB: Micro USB Type B, 1280×720 for installation
  • Lens
  • Focal Length (Zoom Ratio) 4.6mm fixed focal
  • Max. Aperture Ratio F1.6
  • Angular Field of View H: 77.9°, V: 57.9°, D: 98.7°
  • Min. Object Distance 0.4m(1.31ft)
  • Lens Type Fixed
  • Pan / Tilt / Rotate
  • Pan / Tilt / Rotate Range 0°~354° / 0°~67° / 0°~355°
  • Operational
  • IR Viewable Length 30m(98.42ft)
  • Camera Title Displayed up to 85 characters
  • Day & Night Auto(ICR)
  • Backlight Compensation BLC, HLC, WDR, SSDR
  • Wide Dynamic Range 120dB
  • Digital Noise Reduction SSNR?
  • Digital Image Stabilization Support
  • Defog Support
  • Motion Detection 8ea, 8point polygonal zones
  • Privacy Masking 32ea, polygonal zones
  • – Color: Grey/Green/Red/Blue/Black/White
  • – Mosaic
  • Gain Control Low / Middle / High
  • White Balance ATW / AWC / Manual / Indoor / Outdoor
  • LDC Support
  • Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
  • Video Rotation Flip, Mirror, Hallway view(90°/270°)
  • Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
  • Business Intelligence People counting, Queue management, Heatmap
  • Alarm I/O Input 1ea / Output 1ea
  • Alarm Triggers Analytics, Network disconnect, Alarm input
  • Alarm Events File upload via FTP and e-mail
  • Notification via e-mail
  • SD/SDHC/SDXC or NAS recording at event triggers
  • Alarm output
  • DPTZ preset
  • Audio In Selectable(mic in/line in)
  • Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out Line out, Max.output level: 1Vrms
  • Network
  • Ethernet RJ-45(10/100BASE-T)
  • Video Compression H.265/H.264: Main/Baseline/High, MJPEG
  • Resolution 2560×1920, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  • Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
  • MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  • Smart Codec Manual(5ea area), WiseStream?
  • Bitrate Control H.264/H.265: CBR or VBR
  • MJPEG: VBR
  • Streaming Unicast(20 users) / Multicast
  • Multiple streaming(Up to 10 profiles)
  • Audio Compression G.711 u-law /G.726 Selectable
  • G.726(ADPCM) 8KHz, G.711 8KHz
  • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
  • AAC-LC: 48Kbps at 16KHz
  • Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  • Security HTTPS(SSL) Login Authentication
  • Digest Login Authentication
  • IP Address Filtering
  • User access log
  • 802.1X Authentication(EAP-TLS, EAP-LEAP)
  • Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
  • Application Programming Interface ONVIF Profile S/G/T
  • SUNAPI(HTTP API)
  • Wisenet open platform
  • Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
  • Recommended Browser: Google Chrome
  • Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  • Memory 1024MB RAM, 256MB Flash
  • Environmental
  • Operating Temperature / Humidity -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH
  • Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  • Certification IK08
  • Electrical
  • Input Voltage PoE(IEEE802.3af, Class3), 12VDC
  • Power Consumption PoE : Max 9W
  • 12VDC : Max. 8W
  • Mechanical
  • Color / Material Ivory / Aluminum
  • Product dimensions / weight Ø110x90mm(4.33?x3.54?), 380g(0.84 lb)
  • • Design and specifications are subject to change without notice.
  • • Wisenet is the proprietary brand of Hanwha Techwin.
