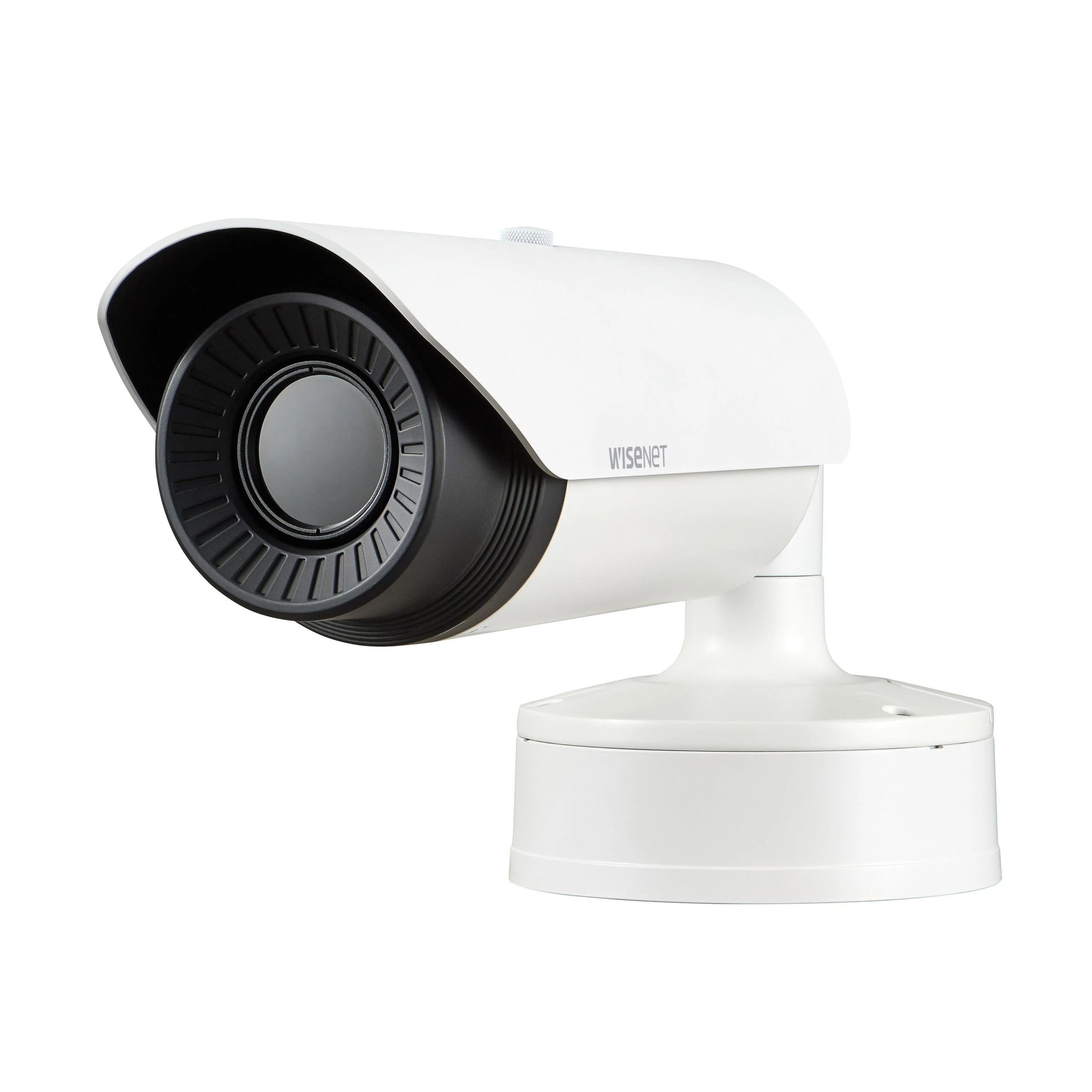

WISENET TNO-4040TR

SAMSUNG TNO-4040TR

TNO-4040TR

VGA H.265 NW Radiometric Thermal Camera


• Max. 640 x 480 resolution support

• Built-in 19mm fixed lens

• H.265, H.264, MJPEG codec

• Max. 30fps@all resolutions (H.265, H.264, MJPEG)

• Motion detection, Handover, Tampering, Loitering

• Directional detection, Audio detection, Sound classification

• Shock detection,Temperature detection, Hallway view

• SD / SDHC / SDXC memory slot (Max. 256GB)

• WiseStreamII support

• PoE, 24V AC, 12V DC

• IP66, NEMA4X, IK10


Video

  • Imaging Device Uncooled micro bolometer
  • NETD <50mK
  • Pixel size 17?
  • Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
  • USB : Micro USB Type B, 1280×720 for installation
  • Lens
  • Focal Length (Zoom Ratio) 19mm fixed focal
  • Max. Aperture Ratio F1.0
  • Angular Field of View H: 32° / V: 24.3° / D: 39.2°
  • Min. Object Distance 11m(36.09ft)
  • Focus Control Fixed
  • Operational
  • Camera Title Displayed up to 85 characters
  • Digital Image Stabilization Support(built-in gyro sensor)
  • Motion Detection 8ea, 8point polygonal zones
  • Privacy Masking 32ea, polygonal zones
  • – Color: Grey/Green/Red/Blue/Black/White
  • – Mosaic
  • Video Rotation Flip, Mirror, Hallway view(90°/270°)
  • Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
  • Alarm I/O Input 1ea / Output 2ea
  • Alarm Triggers Analytics, Network disconnect, Alarm input
  • Alarm Events File upload via FTP and e-mail
  • Notification via e-mail
  • SD/SDHC/SDXC or NAS recording at event triggers
  • Alarm output
  • Handover
  • Audio In Selectable(mic in/line in)
  • Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out Line out, Max.output level: 1Vrms
  • Radiometry
  • Temperature detect range -20°C~130°C(-4°F~266°F)
  • Temperature accuracy ±5?(=100?), ±20%(>100?)
  • Temperature detection 3ea rectanguler
  • Additional Hybrid palettes, Spot temperature reading
  • Network
  • Ethernet RJ-45(10/100BASE-T)
  • Video Compression H.265/H.264: Main/Baseline/High, MJPEG
  • Resolution 640×480, 640×360, 320×240
  • Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
  • MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  • Smart Codec Manual(5ea area), WiseStream?
  • Bitrate Control H.264/H.265: CBR or VBR
  • MJPEG: VBR
  • Streaming Unicast(20 users) / Multicast
  • Multiple streaming(Up to 10 profiles)
  • Audio Compression G.711 u-law /G.726 Selectable
  • G.726(ADPCM) 8KHz, G.711 8KHz
  • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
  • AAC-LC: 48Kbps at 16KHz
  • Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  • Security HTTPS(SSL) Login Authentication
  • Digest Login Authentication
  • IP Address Filtering
  • User access log
  • 802.1X Authentication(EAP-TLS, EAP-LEAP)
  • Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
  • Application Programming Interface ONVIF Profile S/G/T
  • SUNAPI(HTTP API)
  • Wisenet open platform
  • Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
  • Recommended Browser: Google Chrome
  • Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  • Memory 1024MB RAM, 256MB Flash
  • Environmental
  • Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
  • Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  • Certification IP66, IK10, NEMA4X
  • Electrical
  • Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
  • Power Consumption PoE: Max. 10W, typical 8.6W
  • 12VDC: Max. 9W, typical 7.5W
  • 24VAC: Max. 10.5W, typical 8.9W
  • Mechanical
  • Color / Material White / Aluminum
  • RAL Code RAL9003
  • Product dimensions / weight F101.97×401.8mm (4.01×15.82?) / 3,124g (6.89lb)
