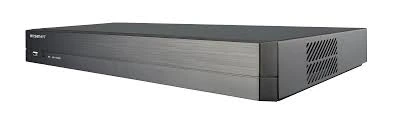

WISENET QRN-810S

SAMSUNG QRN-810S

QRN-810S

8CH 8M H.265 NVR with PoE Switch

• Up to 8ch 8megapixel supported

• H.265, H.264, MJPEG codec supported

• 80Mbps network camera recording

• Plug & play by 8 PoE ports

• Max. 1HDD supported

• HDMI local monitor

• P2P service (QR code connect) support

• Network camera
• Inputs Max. 16CH
• Resolution 8MP ~ CIF
• Protocols Wisenet, ONVIF
• Decoding
• Local Display HDMI: 3840 x 2160, 1920×1080, 1280×720
• Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
• Performance
• Record
• Compression H.265, H.264, MJPEG
• Recording Bandwidth Max. 80Mbps
• Resolution 8MP ~ CIF
• Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
• Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
• Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
• Search & Play
• Playback Bandwidth Max. 32Mbps(8CH simultaneously)
• User Max. 4 Users (Local 1, Remote 3)
• Simultaneous playback Max. 8CH(Local Monitor, Network)
• Fisheye Dewarping WEB / CMS
• Storage
• Supported HDD Up to 6TB
• HDD Slot SATA 1ea(Max. 6TB)
• Backup
• File backup BU/Exe(GUI), JPG/AVI(Network)
• Function Multi channel(Upto 8CH) Play, Date-Time/Title display
• Network
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS Wisenet DDNS
• Transmission Bandwidth Max. 80Mbps
• Audio
• Input/Output 8 CH(network)
• Compression G.711, G.726, AAC(16/48KHz)
• Audio Communication 2-Way
• Max Remote Users Search(3), Live Unicast(10), Multicast(20)
• Security IP address filtering, User access Log, 802.1x, Encryption
• Web viewer
• Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
• Supported browser Plug-in free web viewer
• – Supported Browser: Google Chrome 47, MS Edge 20
• Plug-in Webviewer
• – Supported MS Explore 11, Apple Safari 9 * Mac OS X only
• Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
• Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
• Functions
• Camera Setup
• Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
• Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
• PTZ
• Control Via GUI, Webviewer, SPC-2000
• Smart phone
• Support Model iOS, Android
• Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
• Control Live(Multi-Profile Support), Playback
• Max. Remote Users Search(3), Live Unicast(10)
• Redundancy
• ARB Support
• Easy configuration P2P(QR code)
• Interface
• HDMI 1EA
• Ethernet RJ-45(10/100/1000BASE-T) x 1
• RJ-45(PoE+) x 8
• USB 2EA(Front 1, Rear 1)
• System
• System Control Mouse, IR remocon, Web, Controller
• Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
• Environmental
• Operating Temperature 0°C to +40°C(32? to 104?)
• Operating Humidity 20% ~ 85% RH
• Electrical
• Power Input 54VDC / 1.67A
• Power Consumption Max. 76.2W(1HDD, PoE on)
• Max. 8.1W(1HDD, PoE off)
• PoE Budget Max. 50W
• Mechanical
• Color / Material Black / Metal
• Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (11.8? x 1.85? x 8.2?) (1U)
• Weight 1.01Kg (2.23lb)
