WISENET NVR DUBAI PRN-4011

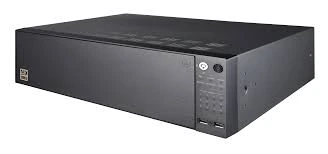

SAMSUNG WISENET PRN-4011

Samsung P Series 64 Channel NVR with Raid.

Key Features

• Up to 64CH, Max.12megapixel resolution
• 400Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support dual monitor video out
• H.265, H.264, MJPEG compression
• WiseStream support
• Max. 12 internal HDDs(96TB)
• Support RAID 5
• ARB&Failover(N+1) support

Samsung Wisenet PRN-4011 quantity 1

Display

• Network Camera
• Inputs Max. 64CH
• Resolution CIF ~ 12MP
• Protocols Samsung, ONVIF
• Live
• Local Display 1x HDMI, 1x VGA Dual Monitor
• Multi-Channel Display [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 /64/ Sequence,
• [Web] 1 / 4 / 9 / 16 / 25 / 36 / 64/Sequence
• Performance [Local monitor] 12M (30fps), 8.3M(120fps), 1080p(480fps), 720P(960fps),
• D1(1920fps)
• Perf ormance
• Operating System Embedded Linux
• Record
• Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
• Recording Bandwidth Max. 400Mbps (RAID-5/6)
• Resolution CIF ~ 12MP
• Type Normal, Schedule (Continuous / Event), Event (Pre / Post)
• Event Trigger Alarm input, Video loss,
• Camera event(Sensor, MD, Video analytics, Defocus)
• Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Search &
• Play
• Playback Bandwidth Max.32Mbps (16CH simultaneously)
• User Max. 4 users (Local 1, Remote 3)
• Mode Date & Time(Calendar)/Event log list / Text search / Smart search
• Simultaneous playback Max. 16CH (Local Monitor, CMS)
• Resolution CIF ~ 12MP
• Fisheye Dewarping WEB / CMS
• Playback Control Fast/Slow Forward/Backward, Move one step up/down
• Storage
• Built-in 0TB ~ 8TB
• Internal HDD 12 (Max 96TB, Non-RAID Mode)
• External iSCSI storage(Max. 192TB), Promise VessRaid R2600
• RAID RAID-5/6(Array Size : 6-HDD x 2 Array)
• Backup File backup BU/Exe (GUI), JPG/AVI (Network)
• Function Multi channel (Up to 16CH) Play, Date-time/title display
• Sensor I/O 4/4 (NO/NC selectable)
• Audio
• Input 64CH (Network)
• Compression G.711, G.726, AAC (16/48KHz)
• Audio Communication 2-way
• Netw ork
• Interface RJ-45(Gigabit ethernet) x4, SFP x2
• Protocol
• TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server,
• Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP,
• ONVIF (Profile-S), SUNAPI (Server, Client)
• DDNS Hanwha DDNS
• Transmission Bandwidth Max. 400Mbps
• Max. Remote Users Search (3), Live unicast (10), Multicast (20)
• IP Version IPv4/v6
• Security IP address filtering, User access Log, 802.1x, Encryption, 2Men-rule
• Language
• English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
• Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,
• Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
• OS Window 7, 8, 10, Mac OS X (10.8 or above)
• Web Browser MS IE, Google Chrome, Mac Safari, Firefox
• Viewer
• Software
• Type SSM, Webviewer, SmartViewer, iPoLis mobile viewer
• CMS Support Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
• Functions
• Camera Setup
• Register Auto, Manual
• Setup Items
• IP address, Add profile edit, Bitrate, Compression, GOP, Quality,
• Camera MD setup, Camera video setup (Simple focus, Brightness/
• Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),
• Fisheye dewarping mode, Hallway View Setup, Camera webpage
• PoE Power Control N/A
• PTZ Control Via GUI, Webviewer, SPC-2000
• Preset 255 Presets
• Smart Phone
• Support Model I-Phone, Android
• Protocol Support RTP, RTSP, HTTP, CGI (SUNAPI)
• Control Live (16CH) : Multi-profile support, Playback (1CH)
• Max. Remote Users Search (3) / Live Unicast (10)
• Redundancy Failover N + 1
• ARB Yes
• System Control Mouse, Web, Controller (SPC-2000)
• Indicat or / Interface
• Front Indicator LED(Status indicator) :
• HDD Action 12, RAID Status 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1
• Switch N/A
• Connectors
• VGA Sub : 1ea (Support live screen up to 32 div. mode)
• HDMI Main : 1ea (Both support Live / PB / Setup)
• – Support up to 4K (3840 x 2160, Single monitor mode 64 div)
• Audio Out 1ea (RCA, Line)
• Ethernet RJ-45 4ea (LAN/WAN, 1Gbps), 1000M SFP 2ea
• Alarm In 4ea, (Terminal block), Alarm reset 1ea
• Out 4ea (Terminal block) – Relay out1(NO/NC/COM) – Relay out2~4(NO/COM)
• USB 2ea (Front 2)
• Storage iSCSI
• Serial RS-232C (UPS Support)(?1)
• Reset Switch(1EA)
• Power Cord 2ea AC Inlet
• System
• Log Log List Max. 20,000 (System log, Event log each)
• Environmental
• Operating Temperature / Humidity +0°C to +40°C(+32°F to +104°F)
• Humidity 20% ~ 85% RH
• Electrical
• Power 100 ~ 240 VAC ±10%; 50/60 Hz, 3~1.5A (Dual SMPS)
• Power Consumption Max. 250W (853 BTU with HDD 12ea)
• Mechanical
• Color / Material Black / Metal
• Dimension (WxHxD) 436.0 x 132.0 x 450.0mm (17.17? x 5.2? x 17.72?) (3U)
• Weight Approx. 11Kg (24.3 lb, HDD not included)
