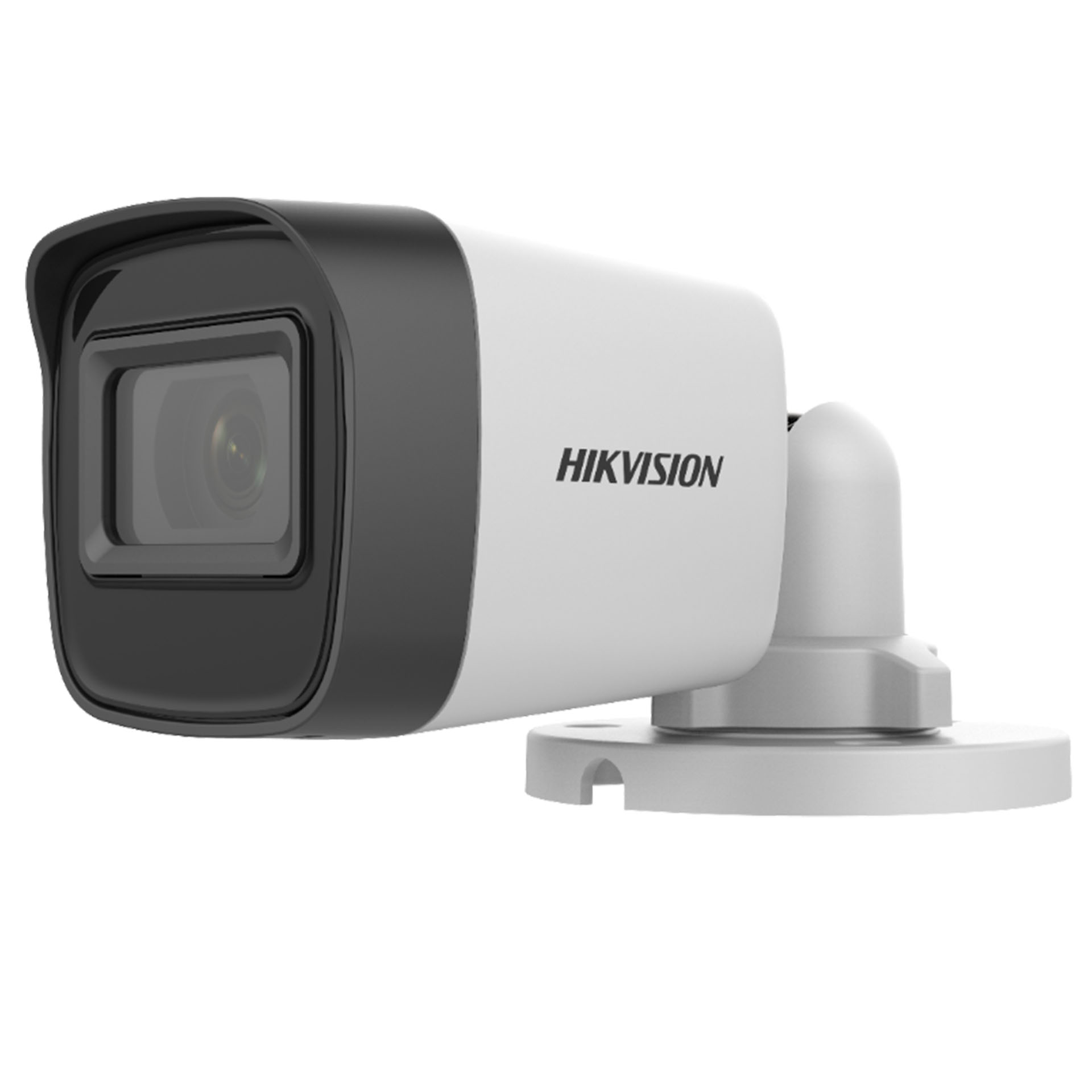

HIKVISION DS-2CE16D0T-VFIR3F(2.8-12mm)

2MP CMOS Sensor, 42 pcs IR LEDs, 40m IR, Outdoor IR Vari-focal Bullet, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, DNR, IP66, 2.8~12mm Lens,Support TVI/AHD/CVI/CVBS video signal output

Specifications

Camera

Image Sensor 2MP CMOS image sensor

Signal System PAL/NTSC

Effective Pixels 1920 (H) ×1080 (V)

Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR

Shutter Time 1/25 (1/30) s to 1/50,000 s

Lens

2.8 – 12 mm @ F1.4

Angle of view: 102.25° – 32 °

Lens Mount F14

Day & Night ICR

Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Synchronization Internal synchronization

Video Frame Rate 1080p@25fps/1080p@30fps

HD Video Output 1 analog HD output

S/N Ratio >62 dB

General

Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)

Power Supply 12 VDC±15%

Power Consumption Max. 4 W

Protection Level IP66

IR Range Up to 40 m

Dimensions 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”)

Weight Approx. 900g (1.98lb
