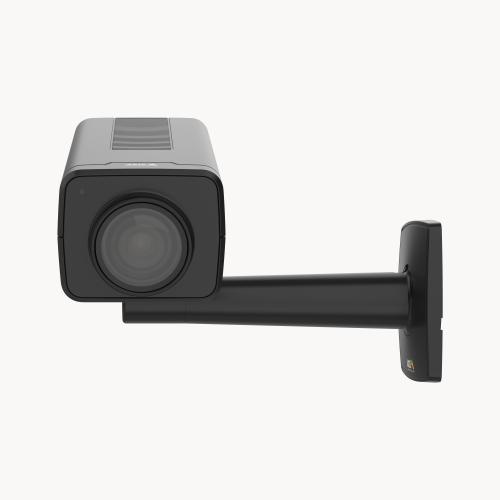

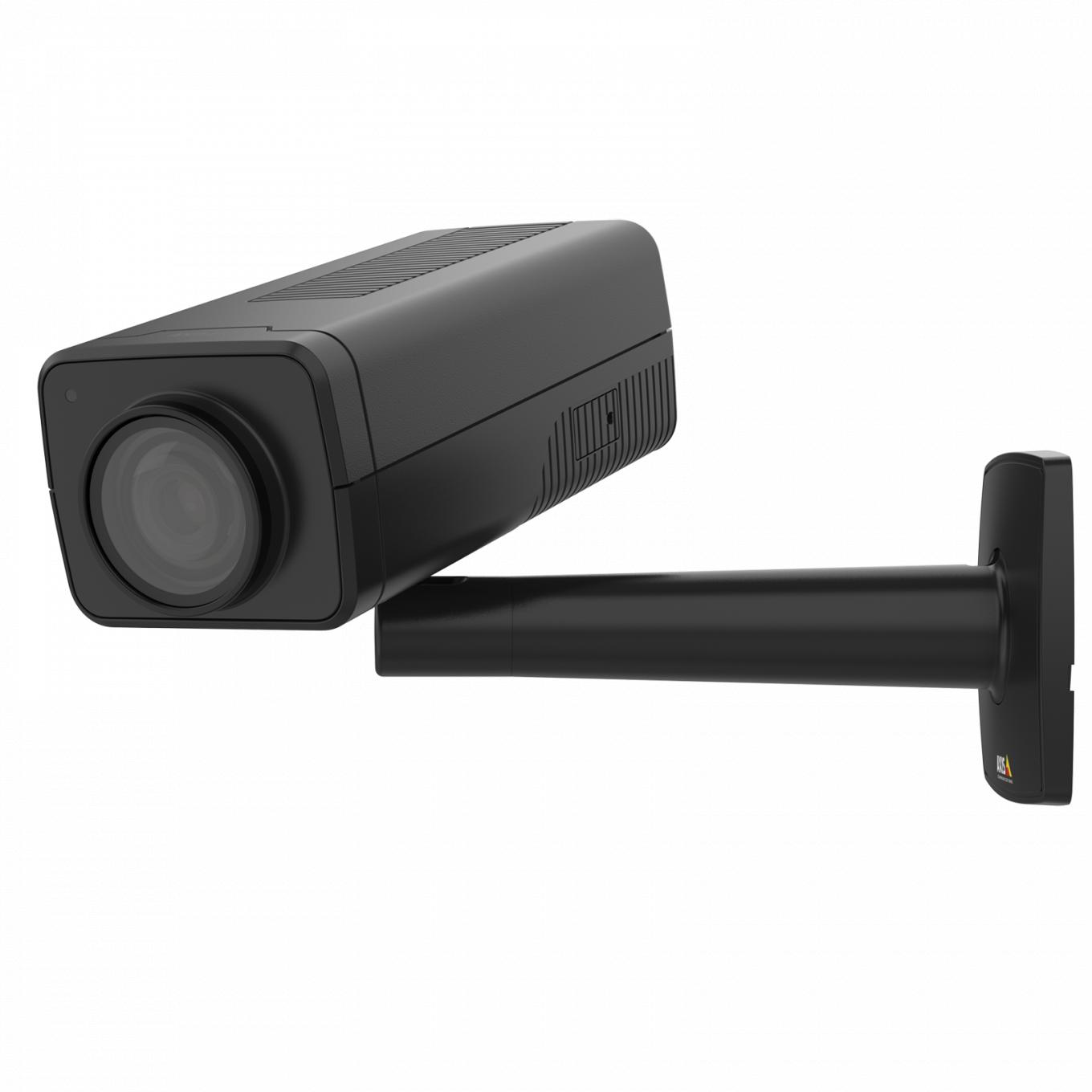

HDTV 1080p camera with 21x motorized zoom, day/night, fixed block camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Built-in varifocal lens, 4-84.6 mm F1.6 with fixed focus and auto focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. HDTV 1080p/2MP resolution up to 60 fps with Forensic WDR. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. HDMI mini and HD-SDI output. AXIS Edge Vault with FIPS certified TPM for added cyber security. Defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio, audio detection with optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type1 Class 3 or IEEE 802.3at Type2 Class 4 (PoE) or 10-28 V DC power with redundancy. Includes black stand for wall and ceiling mount. Midspan or power supply not included.

Technical specifications


Image sensor CMOS

Image sensor size 1/2.8

Lightfinder Lightfinder 2.0

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.1 lux

Min illumination/ light sensitivity (B/W) 0.02 lux


Focal length 4 - 84.6 mm

Optical zoom 21

Horizontal field of view 76-3.6 °

Vertical field of view 42-2.2 °

H.264 Baseline, High, Main

PoE Class 4

Operating temperature -20 to 50 °C
Sustainability BFR/CFR free, PVC free

Power (max) 13.5 W
Power (average) 12.0 W
