AXIS P1378

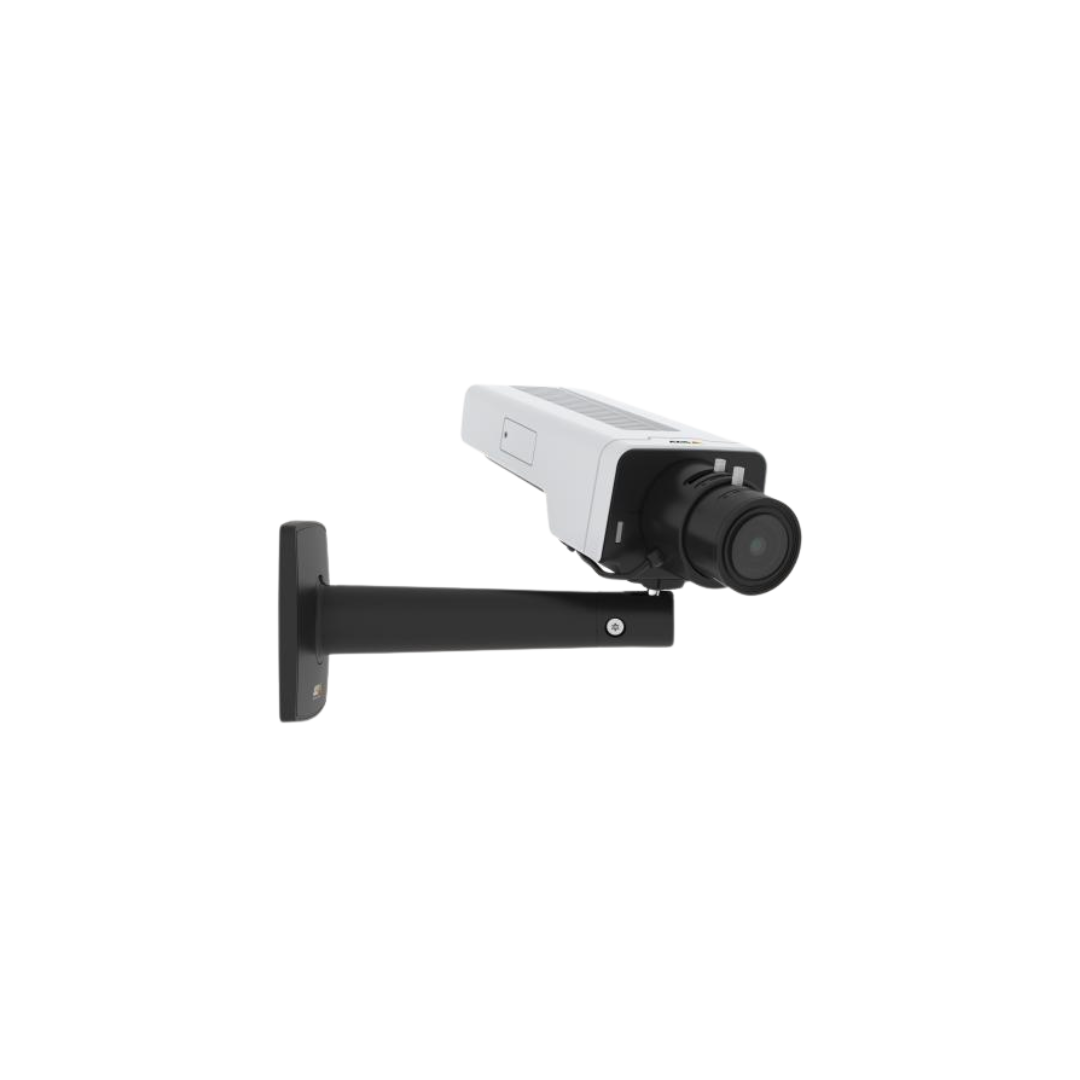

4K resolution, day/night, fixed box camera providing Forensic WDR and Lightfinder technology. Features a 1/1.8" image sensor. Includes an IR corrected varifocal 3.9-10 mm F1.5 P-Iris lens and remote back focus. Camera also supports CS-mount DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 4K at 25/30 fps. Axis Zipstream technology for reduced bandwidth and storage needs. Video motion detection, shock detection, active tampering alarm and security lock slot. Corridor format, barrel distortion correction, defogging and electronic image stabilization. Scene profiles. Two-way audio, audio detection with either built-in microphone or optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. PoE class 3 or 12-28VDC input. Includes black stand for wall and ceiling mount with hole for easy cable management. Midspan or power supply not included.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/1.8

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.15 lux

Min illumination/ light sensitivity (B/W) 0.03 lux

Video

Max video resolution 3840x2160

Max frames per second 25/30

Electronic image stabilization Yes

Lens

Focal length 3.9 - 10 mm

Horizontal field of view 119-45 °

Vertical field of view 62-25 °

Lens mount CS

Replaceable lens Yes

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Audio Support Yes

Network

PoE Class 3

Wireless –

Security

Signed firmware Yes

Secure boot Yes

General

Remote focus –

Remote zoom –

Built-in IR –

Local storage (memory card slot) Yes

Operating temperature -10 to 55 °C

Outdoor Ready –

Vandal rating –

IP rating –

Designed for repaint –

Sustainability BFR/CFR free, PVC free

Power

Power (max) 10.5 W

Power (average) 6.1 W

DC input voltage 12-28 V
