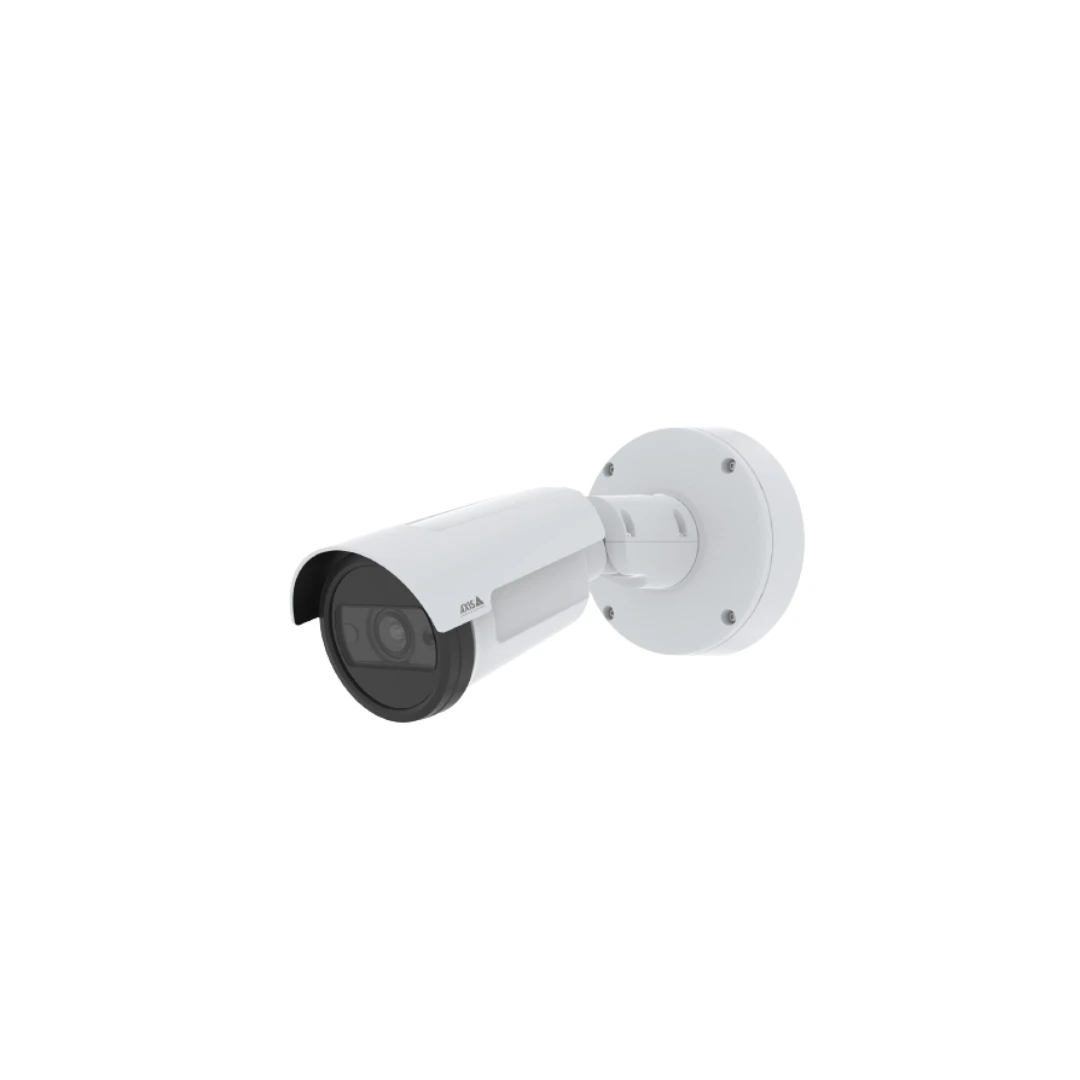

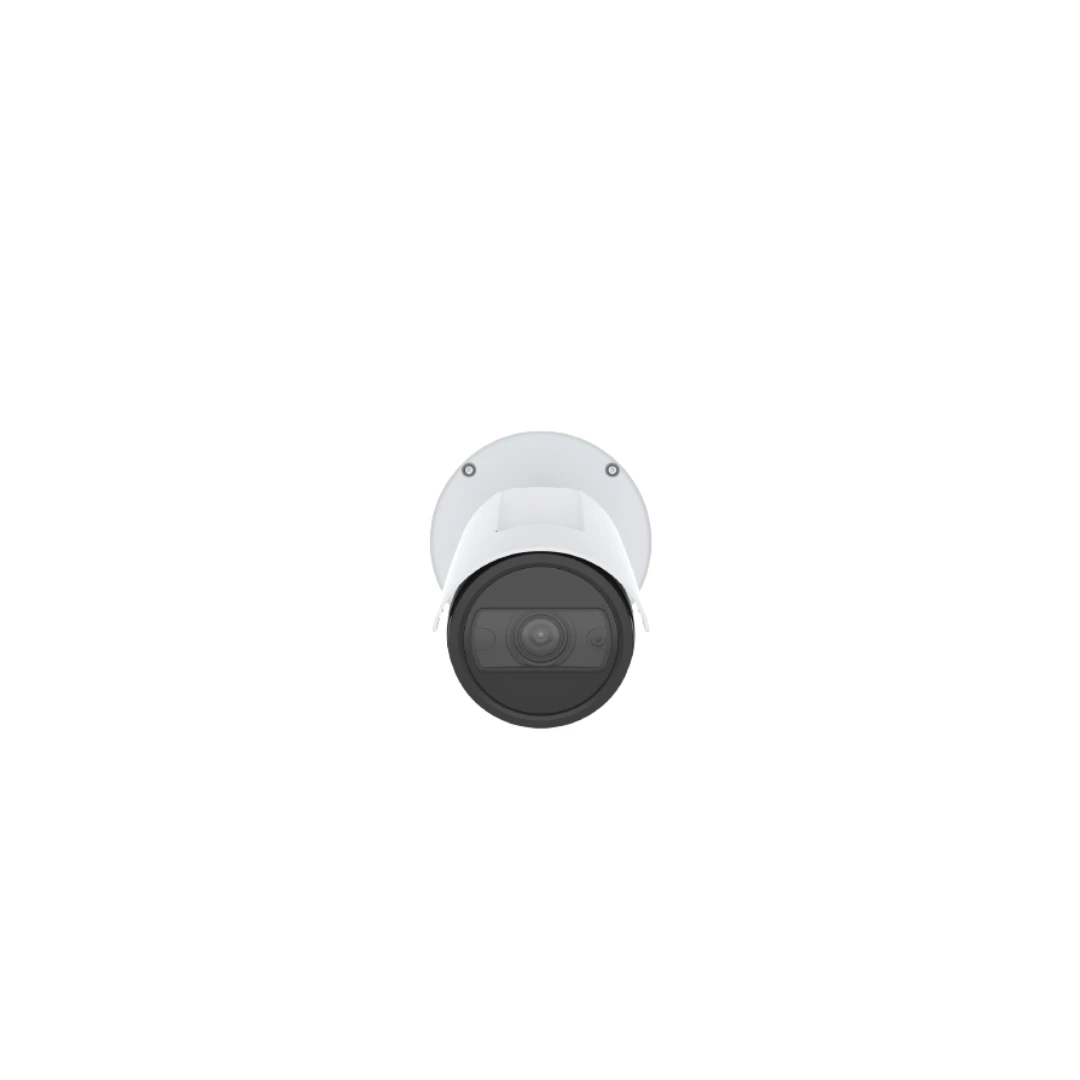

AXIS P1468-LE

Compact outdoor, NEMA 4X, IP66, IP67 and IK10-rated 8MP resolution, day/night, fixed bullet camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0 and OptimizedIR. Varifocal 6-13 mm P-iris lens with remote zoom and focus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 8MP stream up to 60 fps, 30fps with WDR. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm.

 Barrell distortion correction, defogging and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. AXIS Edge Vault for added cyber security. OptimizedIR, a power-efficient IR LED technology. Integrated bracket for easy mounting on wall and ceiling.

 Powered by IEEE 802.3af/802.3at Type 1 Class 3 and 10-28V DC power with redundancy. Operating conditions -40 °C to 60 °C (-40 °F to 140 °F). Includes removable sunshield, mounting bracket, Torx L-keys, and IP66/67- rated cable glands. Midspan not included.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/1.2

Lightfinder Lightfinder 2.0

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.07 lux

Min illumination/ light sensitivity (B/W) 0 lux

Video

Max video resolution 3840x2160

Max frames per second 50/60

Electronic image stabilization –

Lens

Focal length 6.2 - 12.9 mm

Optical zoom 2.08

Horizontal field of view 108 - 49 °

Vertical field of view 58 - 27 °

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Audio Support Yes

Network

PoE Class 3

Security

Signed firmware Yes

Secure boot Yes

General

Remote focus Yes

Remote zoom Yes

Built-in IR Yes

Local storage (memory card slot) Yes

Operating temperature -40 to 60 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66, IP67

Designed for repaint –

Sustainability BFR/CFR free, PVC free

Power

Power (max) 13.0 W

Power (average) 7.6 W
