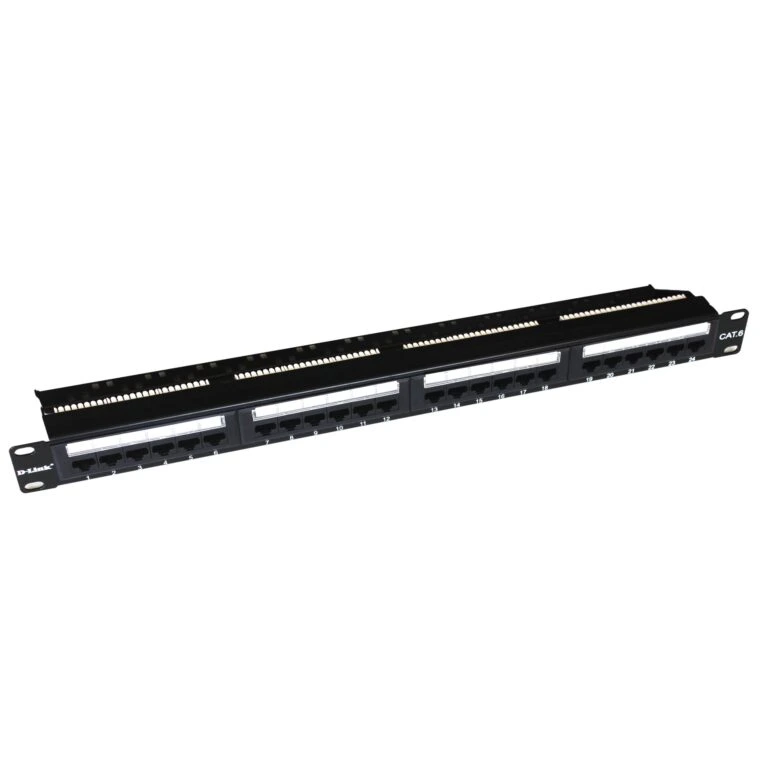

D-Link Cat6 UTP Fully Loaded Patch Panel


 Available in 24 (1U) and 48 (2U) ports

Six Port RJ45 modules applied

ID stripes for identifying port allocations

Improved Cable Management with optional cable management bar

IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools

Mounts in standard 19” racks

The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 standard


1.      Identification: ID plate, PC, Transparent color with paper

2.     Panel: SPCC. 1.6 mm thickness with Black (RAL 9005) Colour painted

3.     RJ45 Jack:

Housing: PBT+ Glass Fiber UL94V-0

Contact Bracket: PBT+Glass Fiber, UL94V-0, Black Color

4.     RJ45 Jack Contact:

Material: Phosphor Bronze with Nickel Plated

Finish: 50 micro-inches Gold plated on plug contact area

5.     IDC:

Housing: PC, UL94V-0

Terminal: phosphor Bronze with Tin plated

6.     Jack Bracket Set: ABS

7.     Support Bar: SPCC, 1.6 mm thickness with Black (RAL 9005) Colour painted

8.     PCB: FR4, UL 94V-0
