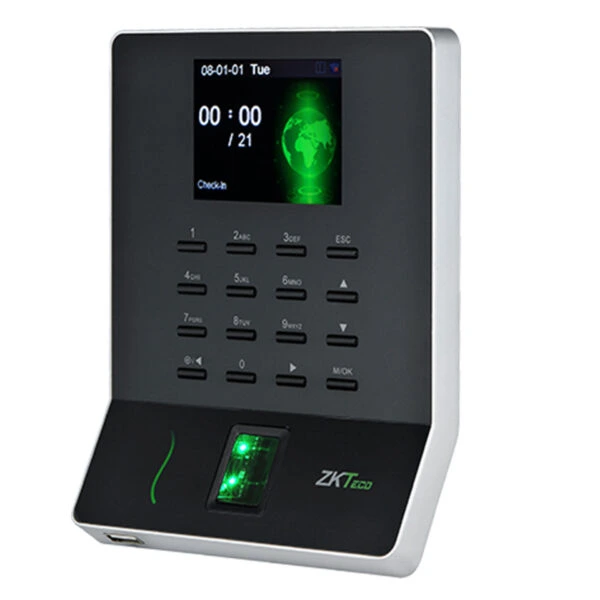

ZKTeco WL20


WL20 is Fingerprint Time & Attendance Terminal with Wi-Fi module. With Wi-Fi function, User needn’t wire Ethernet cable, it supports hotspot mode and allow mobile APPs connection and check in/out and download record directly. It’s associated with ZK new fingerprint reader, the operation remains stable under strong light source and high preciseness of verification of wet and rough fingers. It also has elegant design, it will start new stage of time attendance.


  • Fingerprint Capacity                          1000 / 1500 (without SSR)
  • Finger Algorithm                                ZKFinger VX10.0
  • Record Capacity                                 50,000
  • Display                                                 2.8-inch TFT Screen
  • Communication                                 Wi-Fi , USB-Host
  • Standard Functions                          SSR, DST, Self-Service Query, Automatic Status Switch, T9 Input 9 digit user ID
  • Optional Functions                           TA Assistant APP, Time Cube Cloud Solution
  • Power Supply                                     DC 5V 0.8A
  • Operating Temp                                0 °C – 45 °C
  • Operating Humidity                         20%-80%
  • Dimension                                          168 x 125 x 37.5 mm
