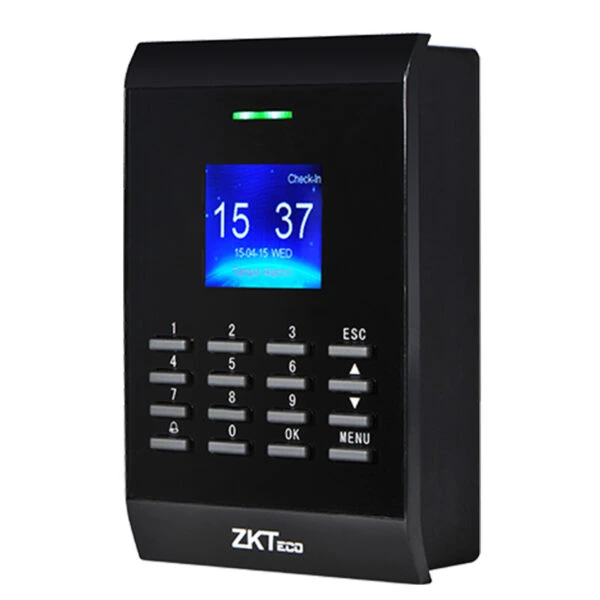

ZKTeco SC405

SC405 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.


  • Card Capacity                                      30,000
  • Transaction Capacity                         80,000
  • Communication                                 TCP/IP, RS485, USB-Host
  • Interface for Access Control           3rd party electric lock, door sensor, exit button, alarm, doorbell
  • Auxiliary Interface                            1ea for linkage function
  • Wiegand Signal                                  Output & Input?SRB
  • Standard Functions                           ID Card, Automatic Status Switch, Self-Service Query, DST, 9 Digit User ID,                                                                         Scheduled Bell, Anti-passback
  • Optional Functions                           IC Card?Print Function
  • Display                                                 TFT LCD Color Screen
  • Power Supply                                      DC 12V
  • Operating Temperature                    0°C ~ 45°C
  • Operating Humidity                          20% ~ 80%
  • Dimension(L×W×H)                         143mmx96mmx42mm
  • SDK                                                       Standalone SDK
  • Software                                               ZKAccess3.5
