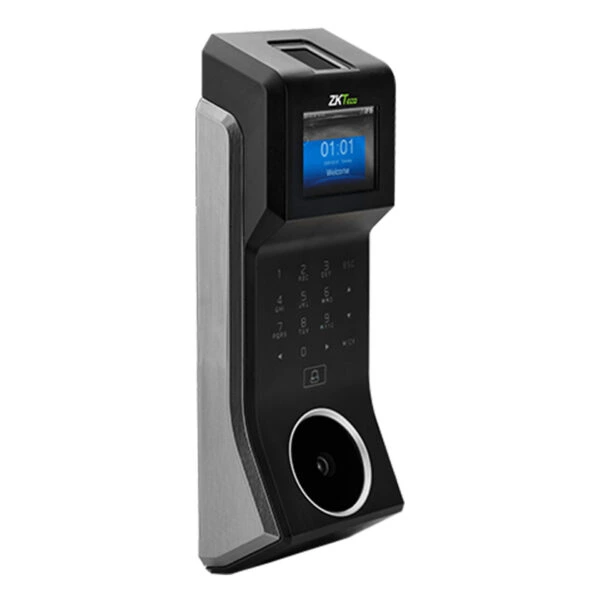

ZKTeco PA10

PA10 is a time attendance and access control terminal with Palm & Fingerprint Hybrid Biometrics. The Palm verification includes Palm Print & Palm Vein, so it not only is touchless, but also supports antispoof function. The BioID sensor possesses outstandingly high identification rate towards dry, wet and rough fingers. TCP/IP, RS485, PoE (optional) and Wi-fi (optional) are also available which enable PA10 to be applied in different networks and various situations.


  • Display                                        2.4-inch TFT LCD Color Screen
  • Palm Capacity                          1,000
  • Fingerprint Capacity              3,000
  • Card Capacity( Optional )      3000 ( ID/ IC Card /HID Proximity Felica card)
  • Transaction Capacity              150,000
  • Sensor                                        BioID Sensor,SilkID(Optional)
  • Communication                       RS485, TCP/IP, USB-host, Wi-fi(Optional)
  • Access Control Interface        3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
  • Wiegand Signal                        Input, Output, SRB
  • Aux. Input                                 1ea for linkage function
  • Functions                                  DST, Automatic Status Switch, Anti-passback, Scheduled-Bell, Printer(Optional),                                                        External FP Reader, ADMS (Optional), PoE(Optional)
  • Power Supply                         12V DC, 3A
  • Operating Temperature      0 °C- 45 °C
  • Operating Humidity             20% – 80%
  • SDK and software                  Standalone SDK, ZKBio Access
