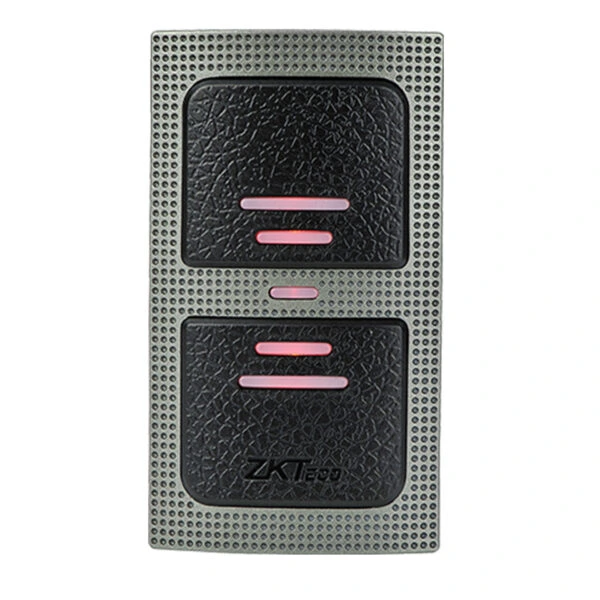

ZKTeco KR500 Series

KR500 Series
Wiegand Card Readers
125kHz EM or 13.56MHz IC card reader
Wiegand interface

  • Read range of up to 10cm for proximity card and 5cm for Mifare card
  • External LED control
  • External Buzzer Control
  • Indoor/Outdoor operation
  • Solid Epoxy potted
  • Waterproof IP64 or IP65
  • Reverse Polarity Protection

  • Read Range                         KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM
  • Reading Time                      =200ms
  • Input Port                            External LED Control, External Buzzer Control
  • Output Port                         KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default)
  • Power/Current                   DC 6-14V / Max.70mA
  • LED                                      Red and Green LEDs
  • Operating Temperature   -10°C to +65°C
  • Material                              ABS+PC with texture
  • Operating Humidity        10% to 90% relative humidity • non-condensing
  • Beeper                                 Yes
  • Index of Protection         • KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65
  • Standard Features           125KHz RFID Card
  • Optional Features            125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card
  • Communication                RS485
