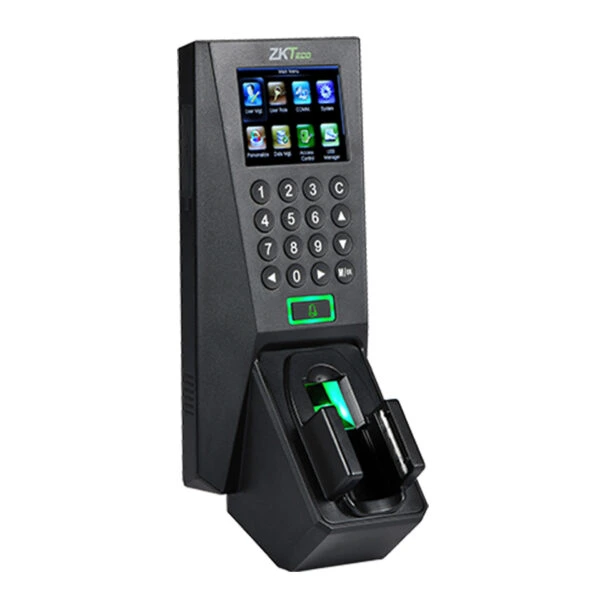

ZKTeco FV18

FV18 is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. The new hardware platform uses ZMM220 core-board with 1.2Ghz CPU. With optimization of both hardware platform and algorithm, FV18 is one of high recognition rate, high security & high speed terminal. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard wiegand signal.


  • Display                                       2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity               1,000
  • Vein Capacity                            1,000
  • Card Capacity                            5,000 (Optional) ID / IC Card / HID Proximity card / iCLASS card
  • Transaction Capacity               100,000
  • Sensor                                         ZK Finger vein senor
  • Algorithm Version                    ZKFinger VX10.0, ZKFingerVein VX3.0
  • Communication                        TCP / IP, USB-host, WIFI (Optional)
  • Access Control Interface         3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
  • Wiegand Signal                          Input and Output, SRB
  • Aux. Input                                   1ea for linkage function
  • Functions                                    DST, Record Query, Anti-passback
  • Optional Functions                   Webserver, WorkCode, Printer, Wireless Doorbell
  • Power Supply                              12V DC, 3A
  • Operating Temperature            0 °C- 45 °C
  • Operating Humidity                  20%-80%
  • SDK and Software                      Standalone SDK, ZKBio Access software
  • Dimension(L x W x H)               210.9 x 80.1 x 96mm
