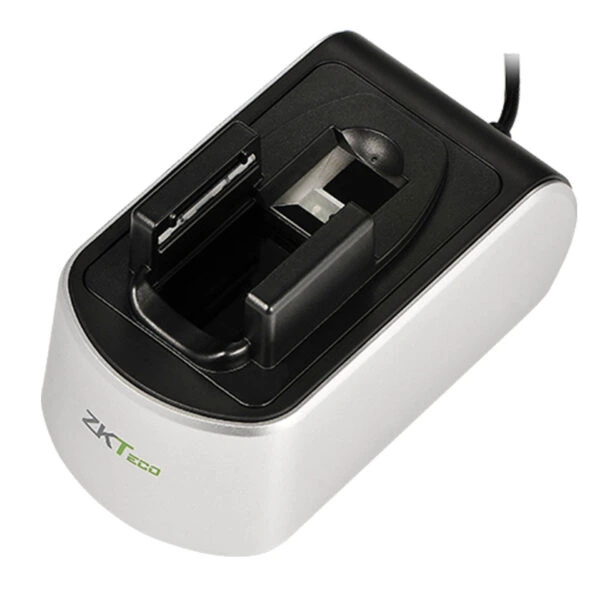

FPV10R is a fingerprint and finger vein combined scanner. In mathematics, it has index level accuracy improvement. With a single scanning, it does two verification of both fingerprint and the finger vein. It has the capability to scan both surface signature of the skin (fingerprints) and the inner side (finger vein), and offers reliable solution to block fake attempts to the system.


  • Material                                          Optical
  • Effective Collection Area             13.24*15.7mm
  • Image Size                                       256*360 pixel / 240*320 pixel
  • Image Resolution                          500dpi / 300dpi
  • Gray Level                                       256
  • Interface Socket                              USB Type A
  • Communication                              USB 2.0 / USB 1.1
  • Operating System                           Windows / Linux / Android
  • Power Voltage                                 4.8V ~ 5.5V(USB)
  • Operating Environment               -20 °C ~ +50 °C; 90% r.h.
  • Dimension                                      114.6*65.8*63.4mm(L*W*TH)
