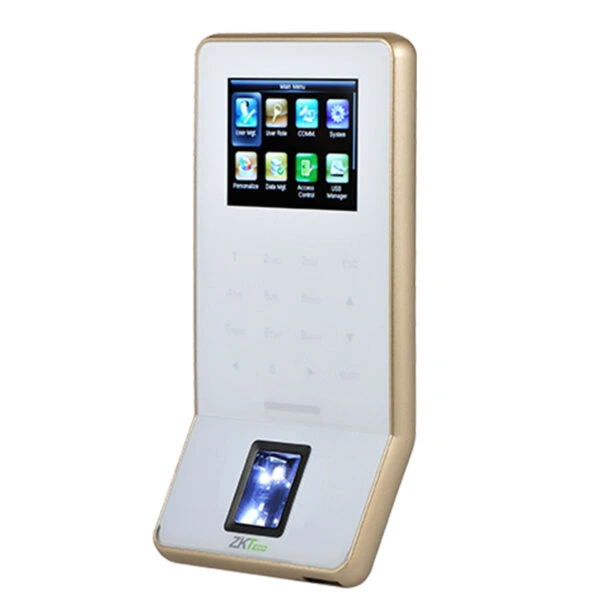

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
- Display 2.4-inch TFT LCD Color Screen
- Fingerprint Capacity 3,000
- Card Capacity 5000(Optional) ID or IC card
- Transaction Capacity 30,000
- Sensor BioID Sensor/ SilkID Sensor (optional)
- Algorithm Version ZKFinger VX10.0
- Communication RS232/485, TCP/IP, USB-host,Wi-Fi
- Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
- Wiegand Signal Input, Output
- Aux. Input 1ea for linkage function
- Functions DST, Automatic Status Switch, Record query, T9 input, 14 digit userID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)
- Power Supply 12V DC,3A
- Operating Temperature 0 ?- 45?
- Operating Humidity 20%-80%
- Dimension(LxWxH) 158.5×78.0x19.4mm
- SDK and software PUSH AC SDK, ZKBio Access
