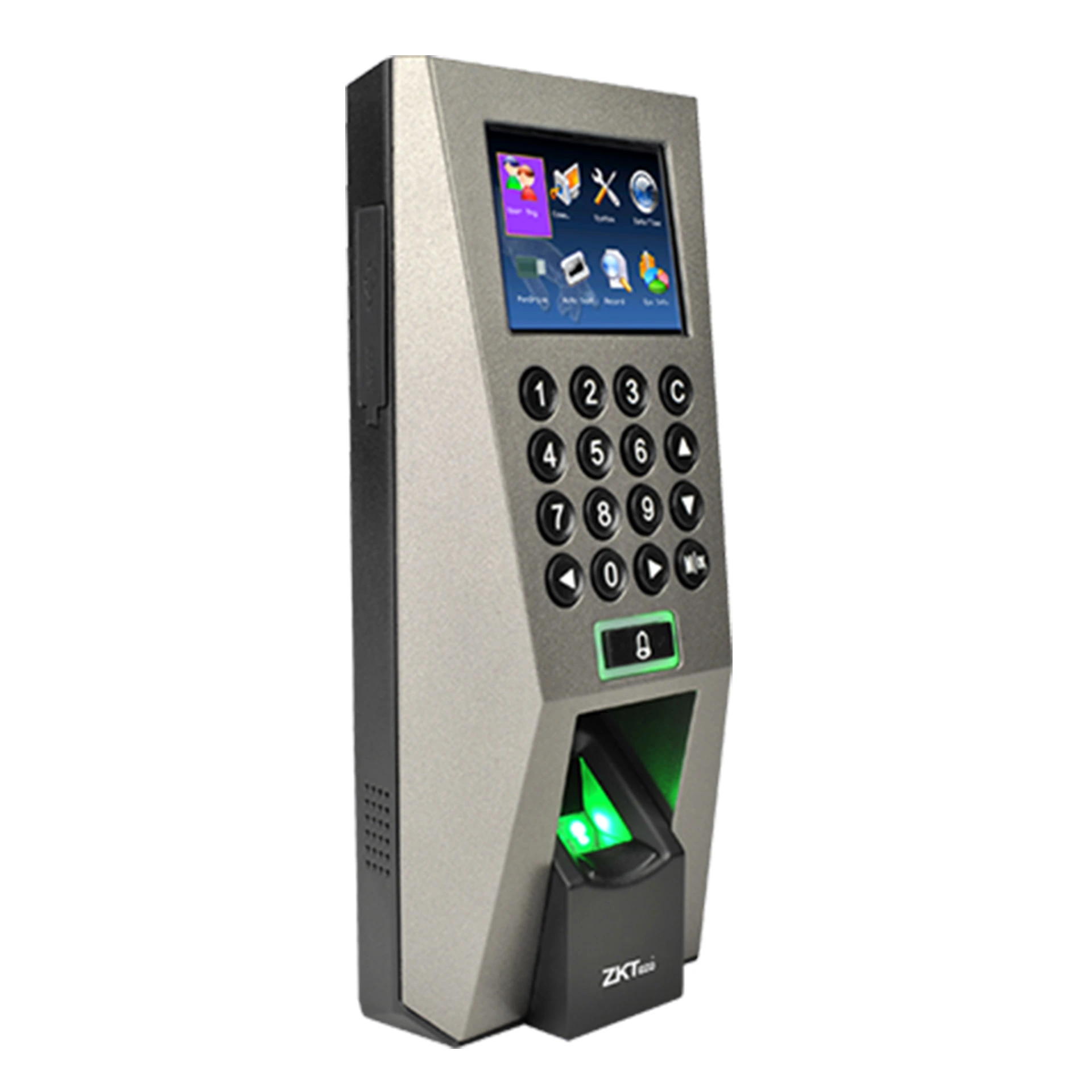

ZKTeco F18

F18 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP and RS485 are also available which enable F18 to be applied in different network.


  • Fingerprint Capacity           3000 Templates
  • Card Capacity                        5,000 (Optional)
  • Transaction Capacity           30,000 Transactions
  • Sensor                                     ZK Optical Sensor
  • Algorithm Version               ZK Finger VX9.0&10.0
  • Communication                   RS232/485, TCP/IP, USB-host
  • Access Control Interface    3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
  • Wiegand Signal                     Input and Output
  • Display                                    TFT LCD Color Screen
  • Interface Styles                      Common, Matrix and Magic styles
  • Standard Function                 Webserver, Anti-passback
  • Optional Function                 ID Card, Mifare Card
  • Power Supply                         12V DC,3A
  • Operating Temperature       0 ?- 45 ?
  • Operating Humidity              20%-80%
  • Dimension(WxDxH)            80*183*42mm
