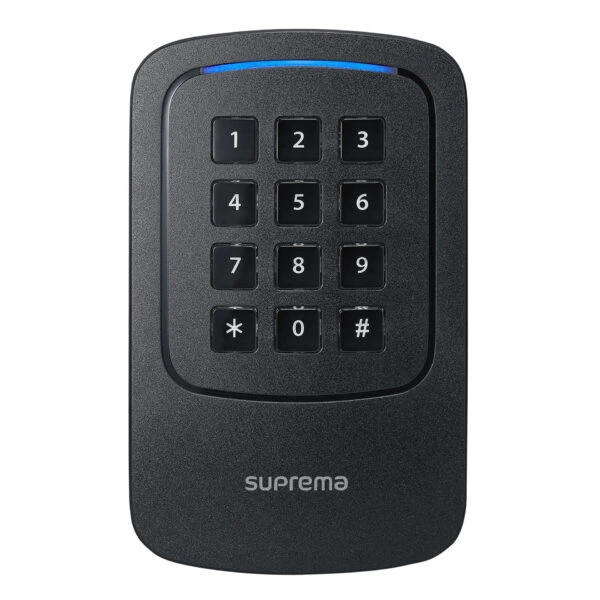

Suprema XPass 2

XPass 2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass 2 can be installed in various environments. XPass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.

Multi-Smartcard Reader with Dual Frequency

Featuring dual-frequency RFID card technology, XPass 2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credentials, the XPass 2 supports most types of RFID card standards with a single device including 125 Khz EM, Wiegand format card, 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, NFC, and BLE.

Mullion-mount Design

With its 48mm width, the XPass 2 fits perfectly in narrow spaces and door frames.

Gangbox-type Design

XPass 2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs.


  • Make                                                  Suprema
  • Manufacturer                                   Suprema
  • Model code                                        XPass D2
  • Reader Type                                       RFID
  • IP Rating                                             IP65/IP67
  • Keypad Integrated                             Yes
  • Read Range mm                                 30 ~ 50 mm mm read range
  • LED / Beep Multi-colour                  LED / Multi-tone Buzzer
  • Wiegand Interface                              Yes
  • Electrical Specifications                     Voltage: 12 V DC
  • Physical Specifications                        Dimensions mm: 80 x 130 x 25Weight g: 117
  • Environmental Specifications            Operating Temp oC: -35 ~ +65 C (-31 ~ +149 F)
  • Operating Humidity                            %: 0 ~ 95
  • Protection                                              IP65/IP67, IK08
