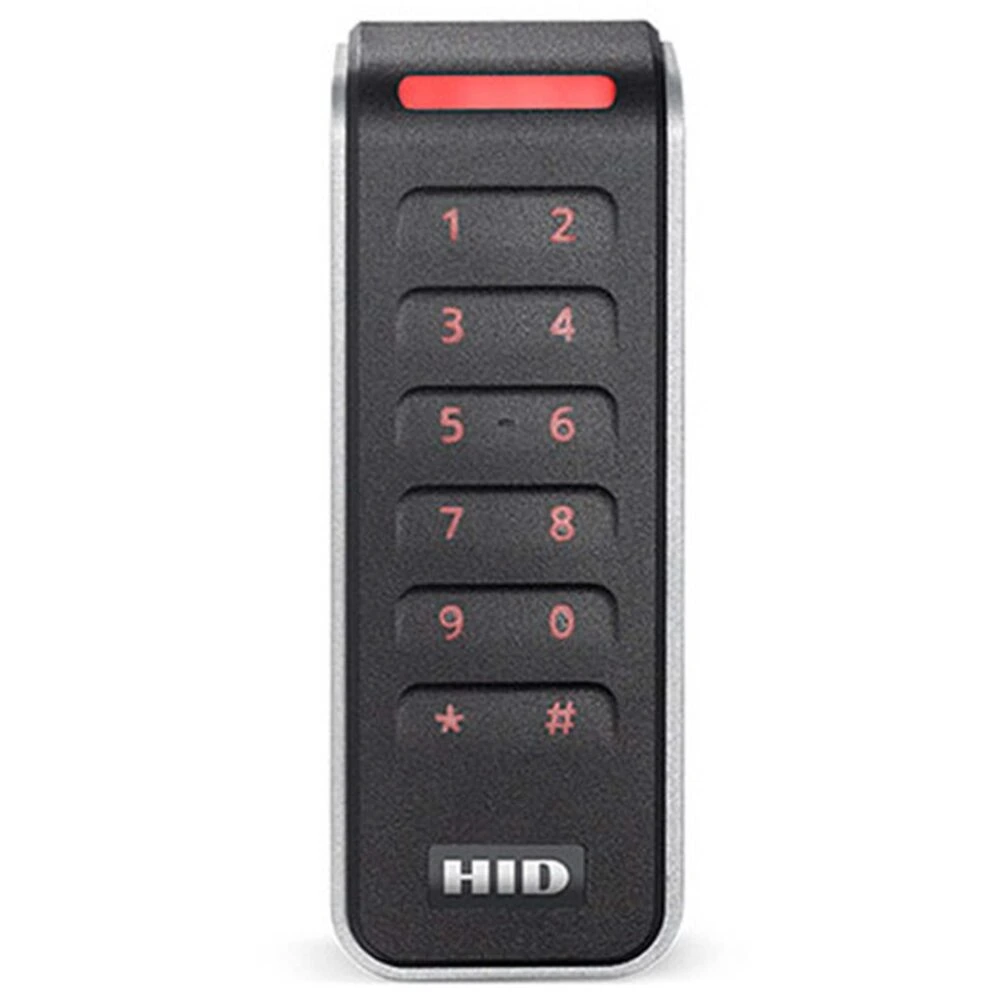

HID Signo 20 PIV Reader

Key Features

  • Highly Versatile – Support for the widest range of credential technologies, including HID Mobile Access via native Bluetooth and Near Field Communication (NFC) capability. Also features Apple’s Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet.
  • Unparalleled Performance – Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that allows the reader to automatically recalibrate and optimize read range performance.
  • Connected to the Future – All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Each reader is also designed to be connected and managed remotely without “sneakernet” or the need to be physically touched.


  • Make                                                                                      HID
  • Manufacturer                                                                     HID Global
  • Model code                                                                         Signo Reader 20
  • Reader Type                                                                       Smart Card
  • Mount Type                                                                        Mullion mount
  • Read Range mm                                                                40 ~ 100 mm read range
  • LED / Beep                                                                         Tri-colour LED, Buzzer
  • Colour                                                                                  Black bezel with silver trim baseplate
  • Wiegand Interface                                                             Yes
  • Electrical Specifications                                                   Voltage: 12 V DC
  • Physical Specifications                                                     Dimensions mm: 45 x 122 x 20Weight g: 95
  • Environmental Specifications                                         Operating Temp oC: -35     ~ +66 C (-31 ~ +150 F)
  • Operating Humidity %: 0 ~ 95
  • Protection                                                                            IP65
