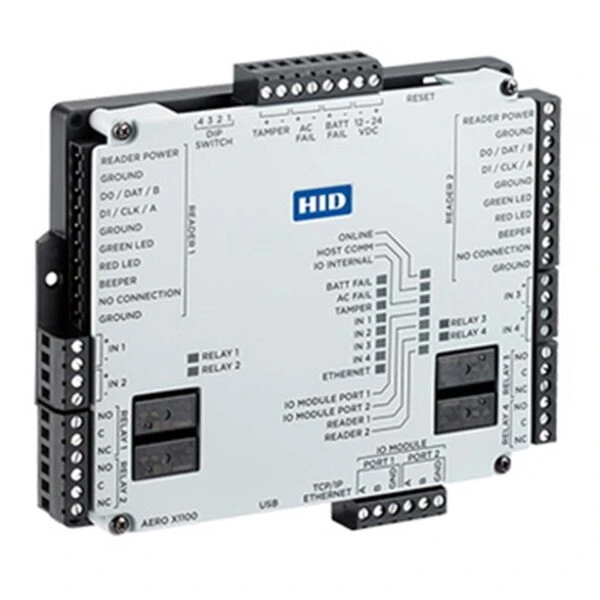

HID Aero Controllers

The HID Aero Controller product line provides a complete and fully functional hardware, firmware, software library and tool infrastructure accompanied by an API integration package for access control software providers.

This product line is ideal for access control providers who do not want to incur the ongoing costs of designing, manufacturing and maintaining panel hardware along with the critical access control logic that commonly resides locally in access control panels.

The HID Aero Controller product line is the successor to HID’s VertX Controllers and is based on HID Mercury panel technology, supporting 4 million+ panels installed globally since the 1990s.

Key Features

Open Architecture – The ability to work with a variety of software partners over time without any re-investment in hardware

Highly Durable and Reliable – Trusted hardware designed to operate in the most demanding access control environments

Futureproof Platform – Highly configurable and ready to grow to meet future needs

Based on Mercury Technology – Built on a proven platform, leveraging the expertise gained from over 25 years serving large enterprise customer needs

Specification

• Make                                                                        HID
• Manufacturer                                                       HID Global
• Model code                                                           Aero X1100
• Series                                                                      HID Aero  Controllers
• Controller Type                                                  Networkable
• Max No. of Doors per Controller                 2 doors/controller
• Networkable                                                        Yes
• Communication Type                                      RS-485
• Onboard No/Type of Inputs / Outputs      7 Inputs / 4 Outputs
• Universal / Wiegand Reader Interface       Yes
• Electrical Specifications                                  Voltage: 12 ~ 24 V DC
• Physical Specifications                                    Dimensions mm: 164 x 140 x 26
• Weight g: 352
• Environmental Specifications                      Operating Temp oC: 0 ~ 70 C (32 ~  158 F) Operating Humidity %: 5 ~85
